Design sketch

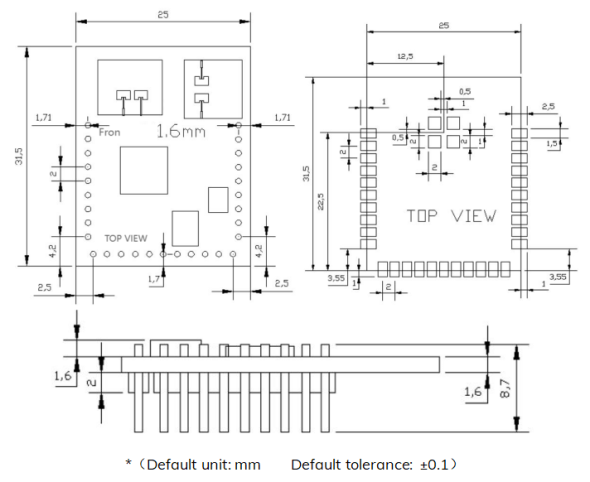

Dimensions

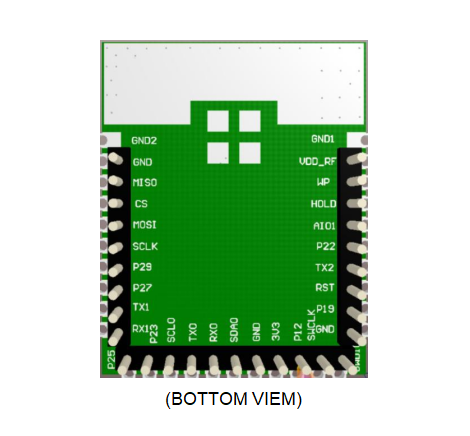

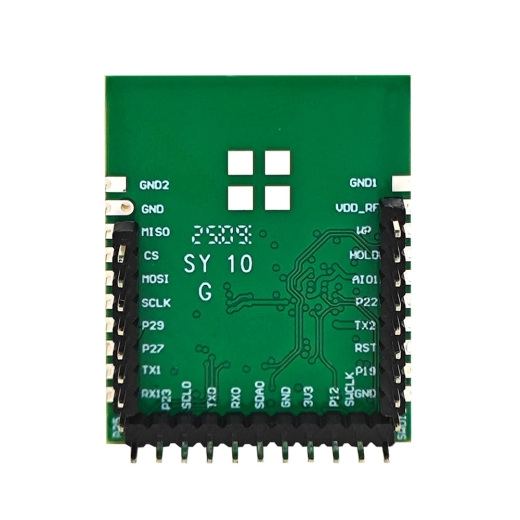

Pin Definition

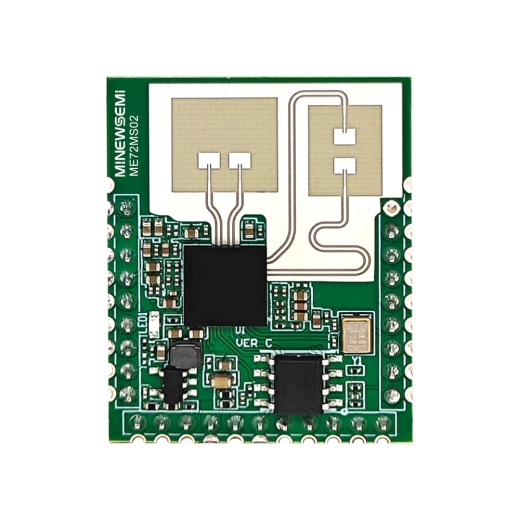

The ME72MS02 is a 60GHz millimeter-wave radar module designed for non-contact respiration and heart rate monitoring. It integrates a 57–61GHz RF transceiver, 2T2R PCB microstrip antennas, 1MB Flash, a radar signal processing unit, and an ARM® Cortex®-M3 processor.
Based on FMCW (Frequency Modulated Continuous Wave) radar technology and advanced signal processing algorithms, the module detects radar echoes reflected from the human body to perform real-time measurement of respiration rate and heart rate for a single person.
The module can simultaneously detect:
· Respiration rate
· Heart rate
· Body movement
· Target distance
Working Frequency | 57~61GHz | Antenna | PCB |
Module Size | 25×31.5×8.7 mm | Data Update Interval | 60s |
Installation Method | Ceiling/tilted mount | Detection Distance | 0.3 ~ 3m |
Respiration Measurement Range | 9 ~ 48bpm | Heart Rate Measurement Range | 60 ~ 150bpm |
Peak Consumption | 1.98W | Maximum Targets | 1 |
Parameter | Value | Notes |
Operating Voltage | 3.1 ~ 3.5V | Standard supply voltage: 3.3V |
Operating Temperature | -20℃~+85℃ | Storage temperature: -40℃~+85℃ |
Operating Current | 40mA | Maximum current: 600mA |
Peak power consumption | 1.98W | Average power consumption: 1.39W |
Respiration Measurement Accuracy | 92% | Measured under a resting supine condition using ECG as the reference. A result within ±3 bpm is considered accurate. Accuracy indicates the percentage of samples falling within this tolerance. |
Heart Rate Measurement Accuracy | 90% | Measured under a resting supine condition using ECG as the reference. A result within ±5 bpm is considered accurate. Accuracy indicates the percentage of samples falling within this tolerance. |
Respiration Rate Measurement Range | 9 - 48bpm | Breaths per minute |
Heart Rate Measurement Range | 60 - 150bpm | Beats per minute |
Data Update Interval | 60s | |
Detection Initialization Time | 30s | |
Module Dimensions | 25*31.5mm |
