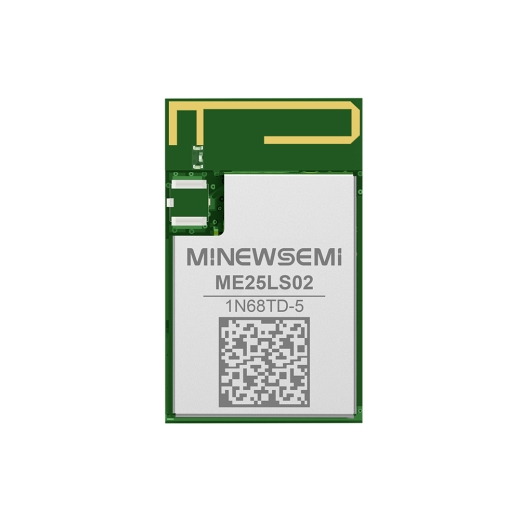

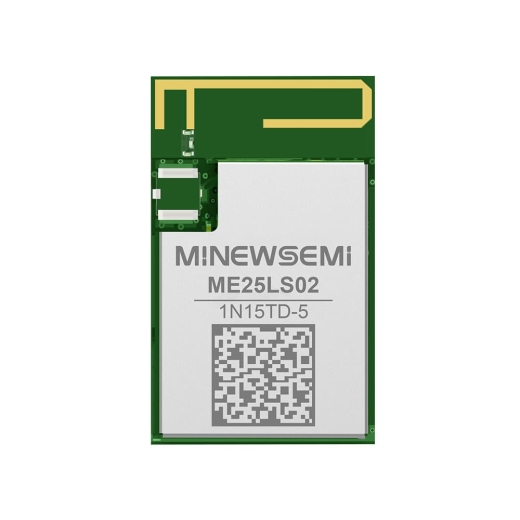

LLCC68+nRF54L15-ME25LS02

High-Performance, Ultra-Long-Range, Ultra-Low-Power LoRaWAN+BLE Combo Module



The ME25LS02 is a high-performance, ultra-low-power LoRaWAN module supporting BLE 6.0 and LoRaWAN protocols. It features a dual-core MCU (ARM Cortex M33 & RISC-V), 256KB RAM, and 1.5MB Flash, making it ideal for long-range, low-power IoT applications.


With excellent reception sensitivity (BLE: -104dBm, LoRa: -126dBm) and high transmission power (BLE: +8dBm, LoRa: 22dBm), the module ensures reliable communication over extended distances. It operates at 3.3V, offers 27 GPIOs, and supports interfaces like USB, UART, and I2C. The open-source development platform enables easy customization and secondary development.




Product Overview
Product Overview

Specifications
Specifications
LLCC68+nRF54L15-ME25LS02 Basic Parameters


Chip Model

LLCC68 + nRF54L15

Antenna

PCB /IPEX

Module Size

25x15x3.2mm

GPIO

27

Flash

1.5MB

RAM

256KB

Receiving Sensitivity

BLE:-104dBm

LoRa:-126dBm

Transmission Power

BLE:-40-+8dBm

LoRa:22dBm

Current(TX)

Max- 118mA

Current(RX)

Max-10mA




Download
Download
ME25LS02_LLCC68_Datasheet_K_EN-Brief
Last Update Time  2025-03-13
File Size  0.72MB
Download Times  2
