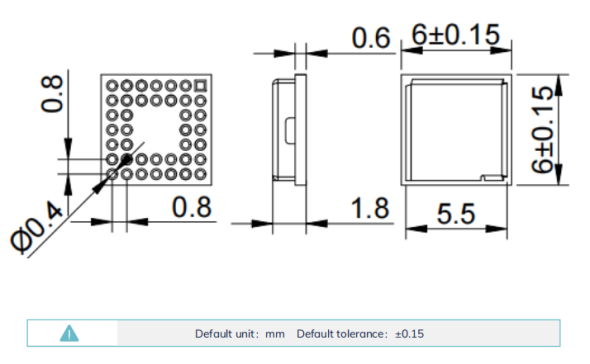

  • Dimensions

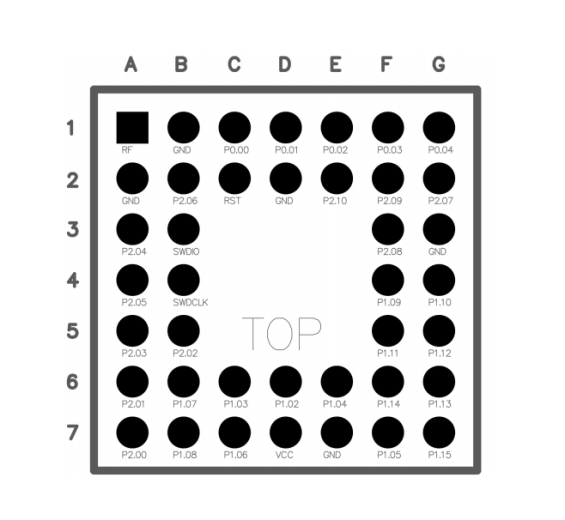

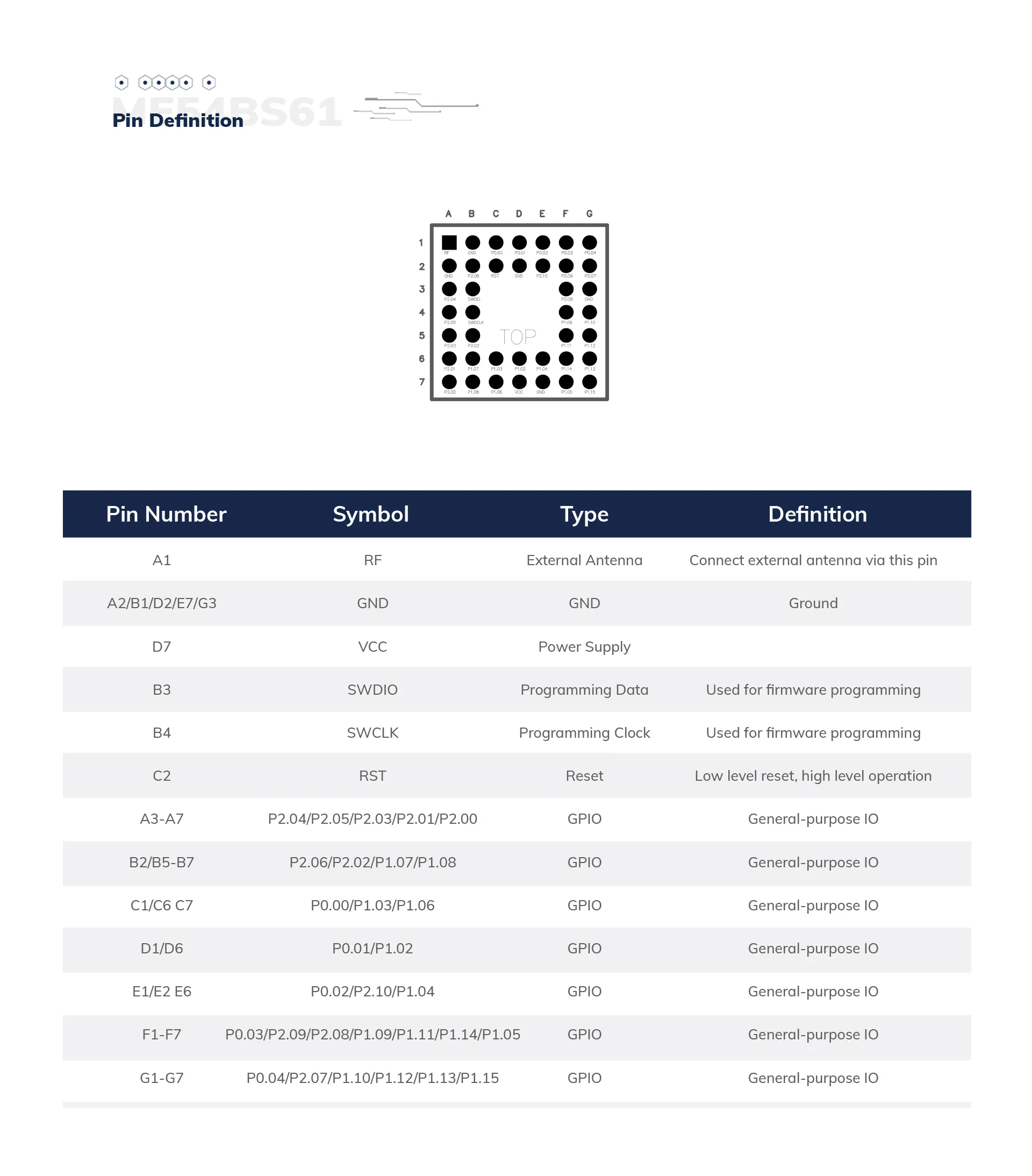

  • Pin Definition

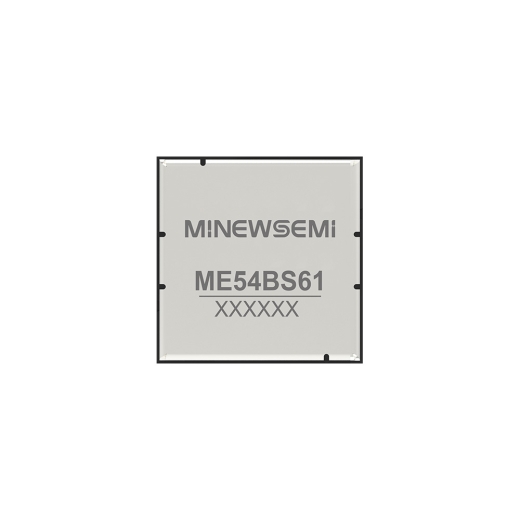

nRF54L15-ME54BS61

Ultra-compact Size, High Cost Performance, Ultra-low Power Bluetooth 6.0 Module

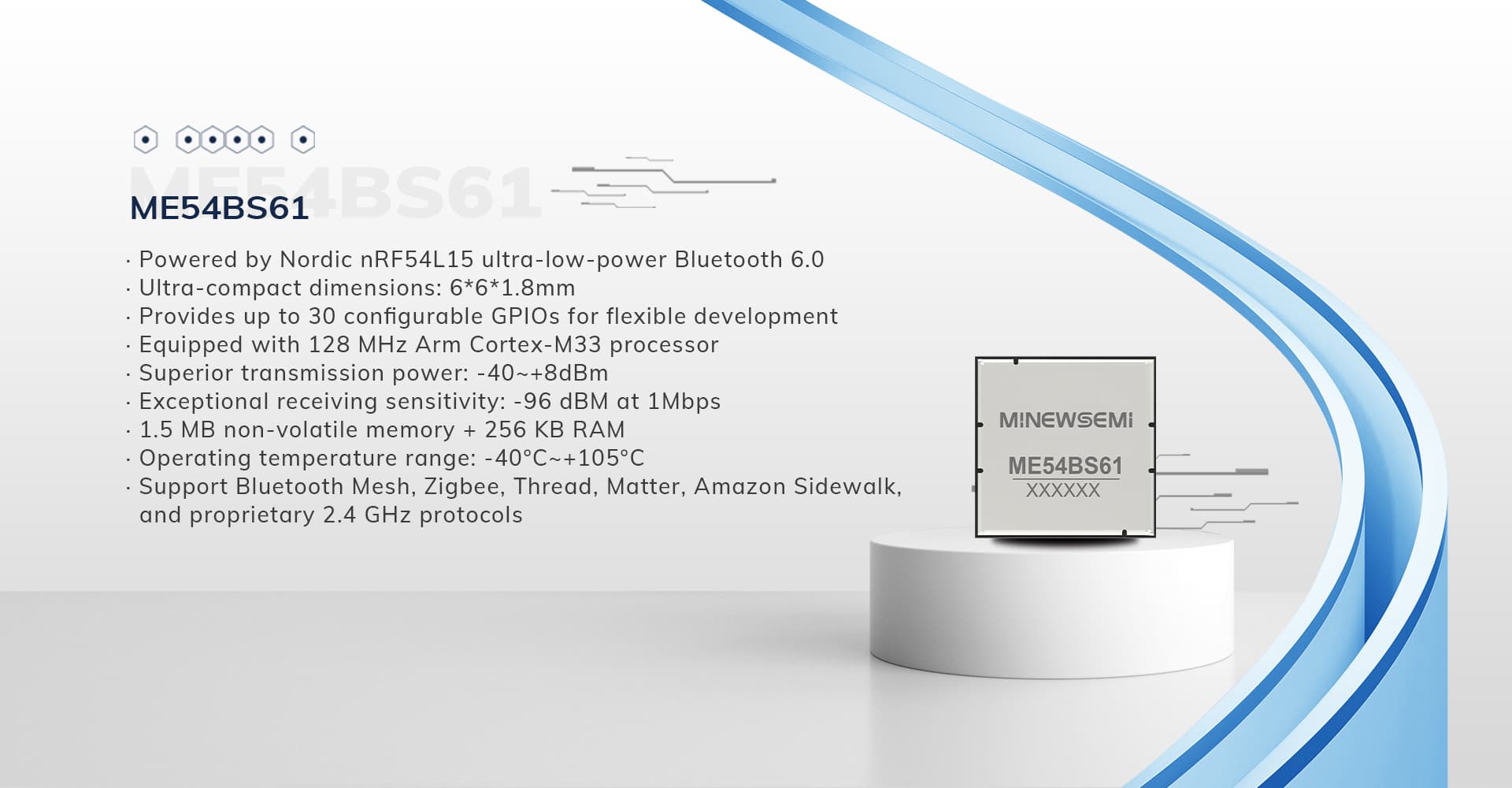

ME54BS61 is a highly flexible, ultra-low-power, cost-effective Bluetooth module based on the nRF54L15 WLCSP. It features a powerful Arm® Cortex®-M33 CPU running at up to 128 MHz, along with 1.5MB NVM storage and 256 KB RAM. It features 30 GPIO pins for versatile connectivity, and an RF pin for flexible antenna design. With ultra-low system power consumption and excellent RF performance, it delivers an optimal Bluetooth connectivity solution.


One of the standout features of the ME54BS61 is its ultra-compact size of just 6x6x1.8mm, making it ideal for space-constrained applications without compromising performance.




Specifications
Specifications
nRF54L15-ME54BS61 Basic Parameters


Chip Model

nRF54L15

Antenna

/

Module Size

6×1.8mm

GPIO

30

Flash

1.5MB

RAM

256KB

Receiving Sensitivity

-96dBm

Transmission Power

-40 ~ +8dBm

Emitting Current

0dBm-5mA

Receiving Current

3.2mA


Electrical Specification

Parameter

Value

Notes

Working Voltage

1.7V-3.6V

To ensure proper RF performance, it is recommended that the supply voltage is not lower than 2.3V

Working Temperature

-40~+105

Operating temperature from -40°C to 105°C

Transmission Power

-40 ~ +8dBm

Configurable

Current(RX)

3.2mA

RF receiving current under 1Mbps pattern

Current(TX)

5mA

RF transmission current under 0dBm pattern

Module Dimension

6.0*6.0*1.8mm


Quantity of IO Port

30



Download
Download
ME54BS61-nRF54L15_Datasheet_K_EN
Last Update Time  2025-07-08
File Size  2.03MB
Download Times  9
