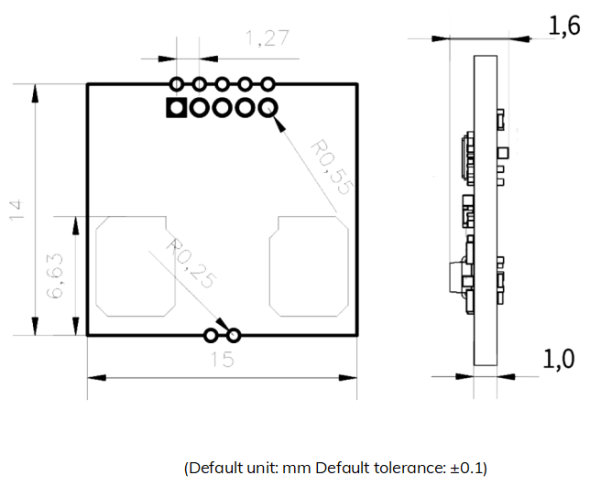

Dimensions
Pin Definition

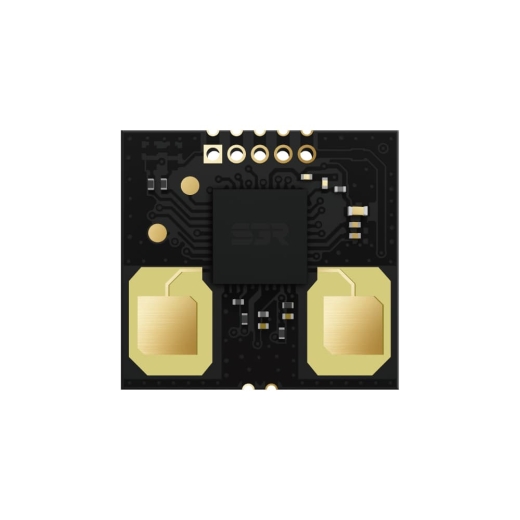

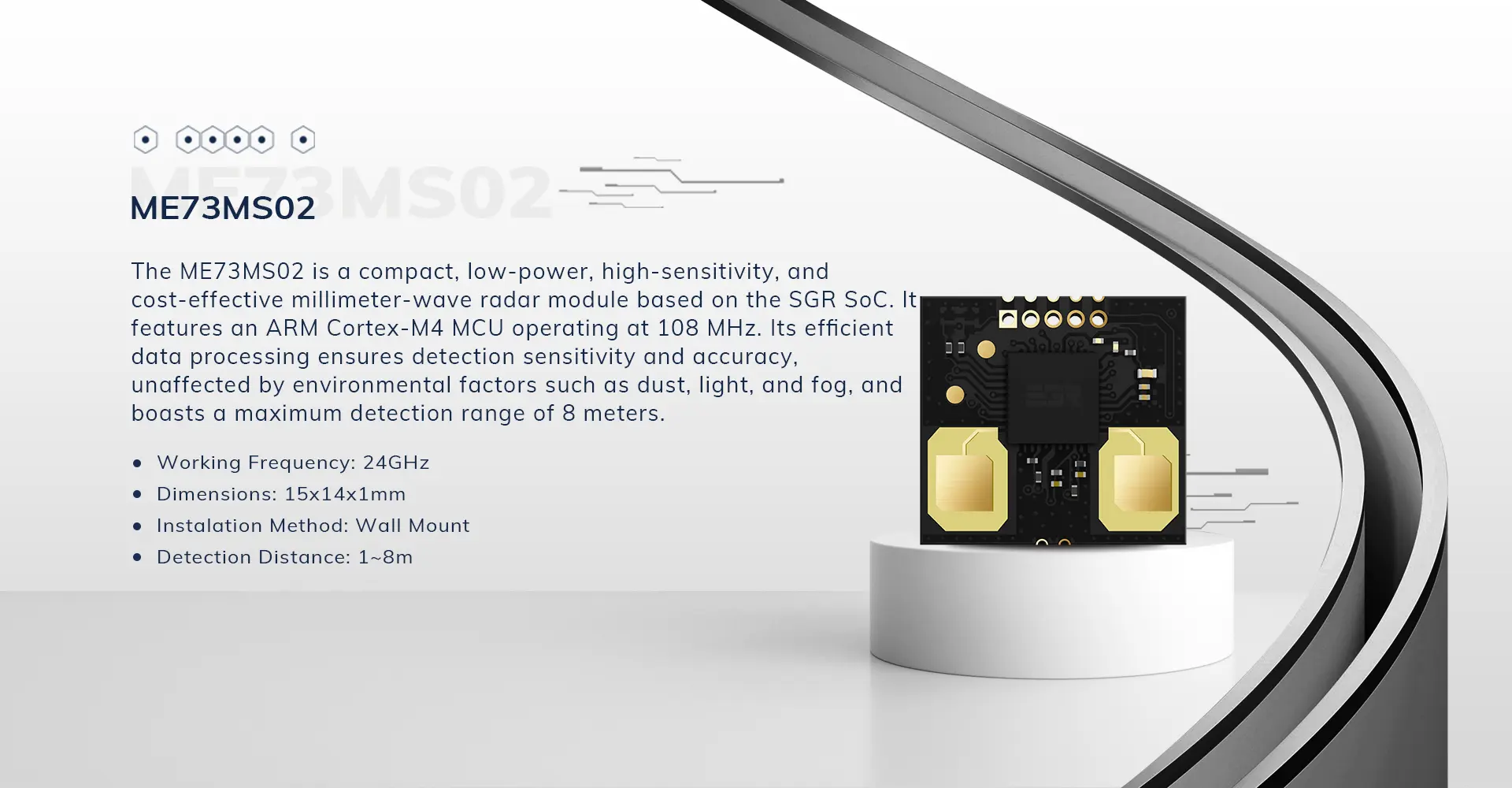

The ME73MS02 is a compact, low-power, high-sensitivity, and cost-effective millimeter-wave radar module based on the SGR SoC. It features an ARM Cortex-M4 MCU operating at 108 MHz. Its efficient data processing ensures detection sensitivity and accuracy, unaffected by environmental factors such as dust, light, and fog, and boasts a maximum detection range of 8 meters.
Module Size | 15×14×1mm | GPIO | 3 |
Antenna | PCB | Average Operating Current | 20mA |
Firmware | Mount firmware | ||
Parameter | Value | Notes |
Operating Voltage | 3V-3.5V | Operating power supply voltage 3.3V |
Operating Temperature | -40℃~+85℃ | Storage temperature is -40℃~+105℃ |
Average Operating Current | 20mA | |
Max Operating Current | 60mA | |
Module Dimensions | 15.0*14.0*1.0mm | |
Quantity of IO Port | 3 |
