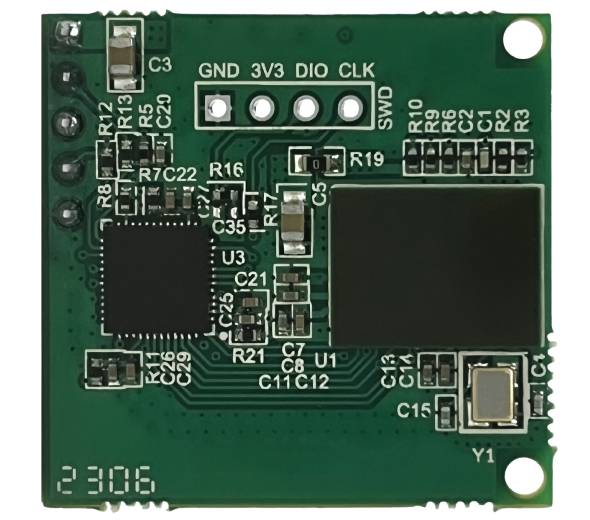

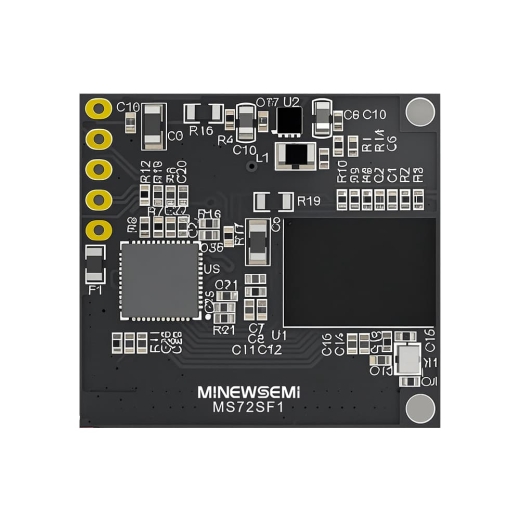

The MS72SF1 is a 60GHz millimeter-wave radar module designed for reliable indoor human presence detection and monitoring. Unlike traditional vision, infrared, or laser-based methods, it operates unaffected by lighting conditions, ensuring 24/7 performance while protecting personal privacy.
It supports multiple target counting, motion tracking, and indoor trajectory tracing, while also delivering precise detection and suppressing interference from curtains, plants, and similar obstacles. With its low cost, high reliability, and strong performance, the MS72SF1 is an ideal sensing solution for modern smart home applications.
NO | Parameter | NO. | Parameter |
1 | Installation method: Ceiling mount | 6 | Max Consumption：1.7w |
2 | Detection Distance：0.5~8m, (The effective projection ground is a circle with a radius of 3.5 meters, and the installation height is 2.7 meters) | 7 | Number of Trackers：≤10 |
3 | Azimuth Coverage: ±60° | 8 | Working Frequency：60-64GHz |
4 | Pitch angle coverage: ±60° | 9 | Processing Period：≤30ms |
5 | Avg Consumption：0.3w | 10 | Dimension：29.36*28mm |
