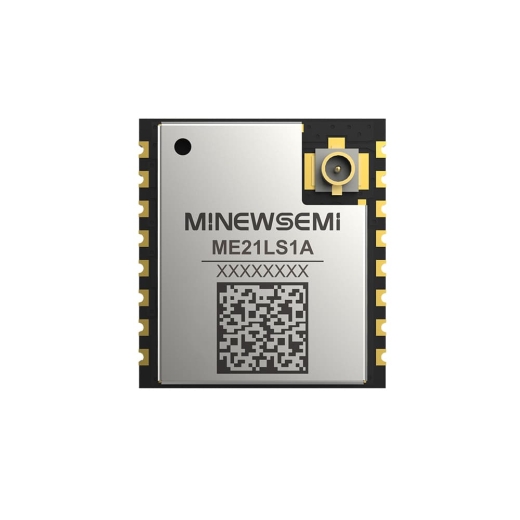

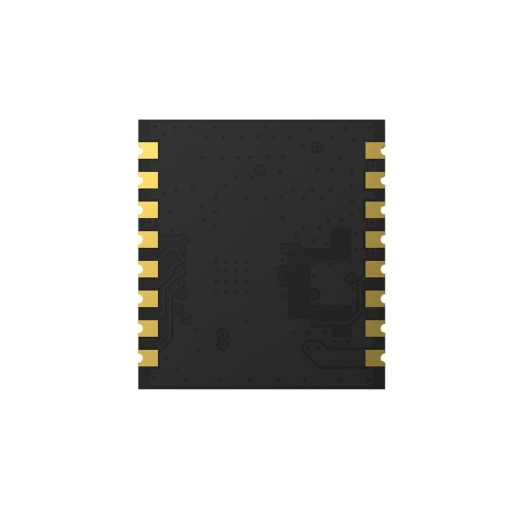

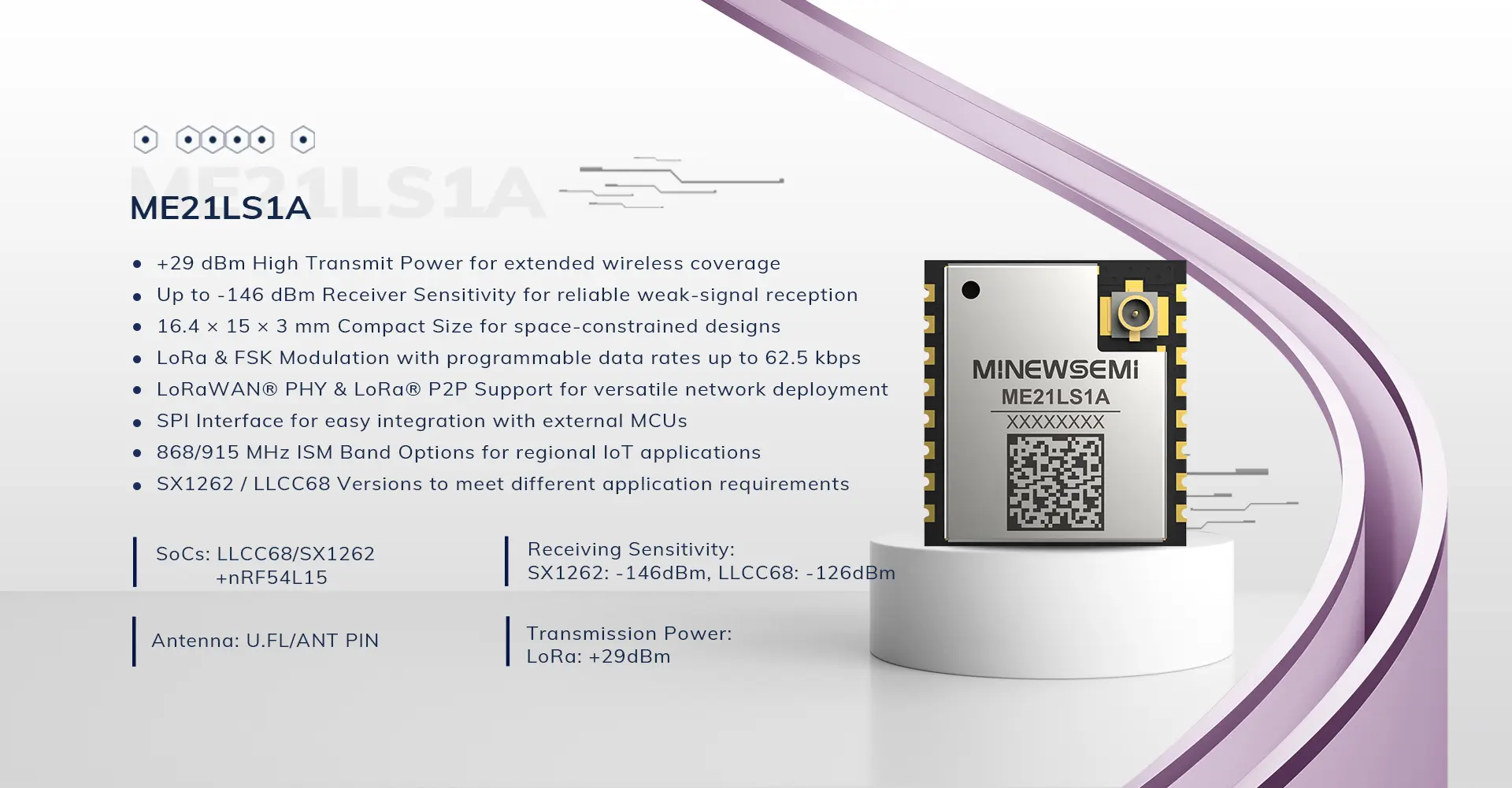

The ME21LS1A module is a LoRa wireless half-duplex transceiver module based on Semtech's LLCC68/SX1262. It supports global ISM frequency bands and features high transmit power, ultra-long range, and a compact design with an easy-to-use SPI interface.
With enhanced transmit power, the module integrates a high-efficiency power amplifier to provide up to +29 dBm transmit power. It also offers high receiver sensitivity, down to -146 dBm. The module complies with the physical layer requirements of the LoRaWAN® standard and supports LoRa® P2P (Point-to-Point) communication, enabling customers to quickly establish private long-range LoRa® networks.
Chip Model | LLCC68/SX1262 | Antenna | U.FL/ANT PIN |
Module Size | 16.4x15x3mm | GPIO | - |
Receiving Sensitivity | SX1262: -146dBm LLCC68: -126dBm | Transmission Power | LoRa: +29dBm |
Current(TX) | 700mA@avg. | Current(RX) | 12.25mA |
Electrical Specification
Parameter | Value | Notes |
Operating Voltage | 3.5V-4.8V | Standard voltage 4.0V |
Working Temperature | -40℃~+85℃ | Storage temperature is -40℃~+125℃ |
Operating Frequency | 915MHz | Optional 868MHz frequency bands Default set is 915MHz |
Transmission Power | +29dBm | Configurable |
Current(RX) | 12.25mA | RX mode |
Current(TX) | 700mA | TX mode avg. value |
Module Dimensions | 16.4*15*3mm |
