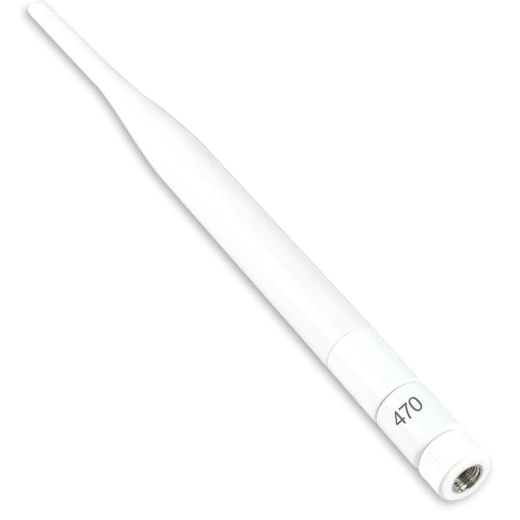

Design sketch
Specifically designed for the 470 MHz frequency band, ensuring stable and efficient wireless communication performance.
Up to 3.94 dBi gain with VSWR ≤ 2.0, delivering strong signal transmission and reduced signal loss.
Features omnidirectional radiation and vertical polarization, enabling uniform signal coverage for reliable connectivity.
Foldable rubber antenna structure improves portability and allows flexible angle adjustment during installation.
Made of ABS + copper composite materials, providing good durability and long-term performance stability.
Suitable for IoT devices, industrial wireless control, smart metering (water, electricity, gas), and security monitoring systems.
Designed to support low-power, long-distance wireless transmission in various IoT and industrial scenarios.
Fully compliant with RoHS 2015/863/EU environmental standards, ensuring environmentally friendly and safe materials.
Electrical Specifications | |
Frequency Range | 470MHZ |
VSWR | ≤2.0 |
GAIN | 3.94dBi |
Radiation | OMNI |
Polarization | LINEAR |
Input Impedance | 50 Ω |
Mechanical Specifications | |
Input connector | SMA-J |
Antenna material | ABS + COPPER |
Working Temperature | -30℃~+80℃ |
Working Temperature | 40~85% |
Weight | 17±1g |
