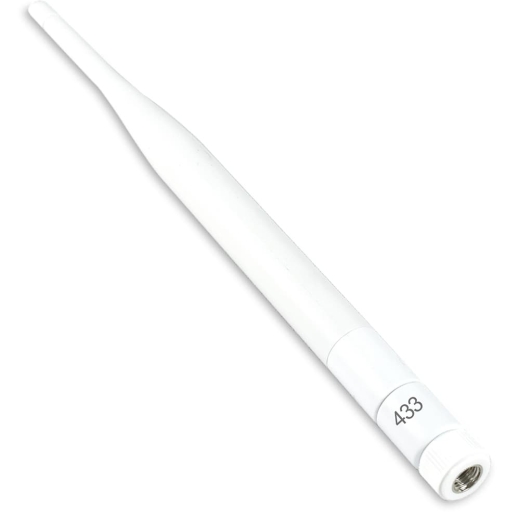

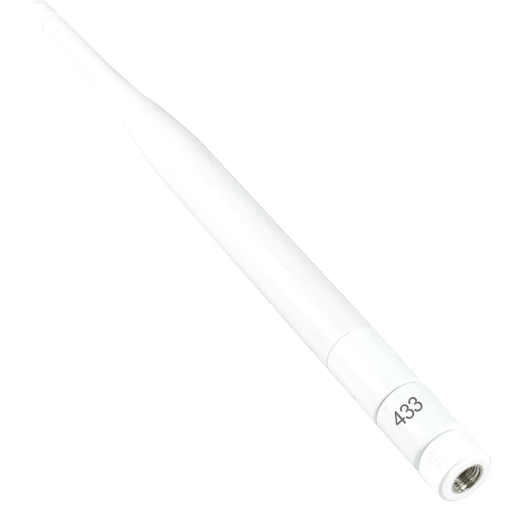

AL101 is a highly adaptable folding rubber rod antenna specifically designed for the 433MHz frequency band. Its stacked structure balances portability with installation flexibility, and it has passed comprehensive reliability testing and RoHS environmental certification. With its stable signal transmission performance, wide temperature compatibility, and lightning protection design, it is widely applicable to various scenarios such as IoT terminals, smart home systems, and industrial wireless control. It efficiently meets diverse low-power, long-range wireless communication requirements.
Electrical Specifications | |
Frequency Range | 433MHz |
VSWR | ≤2.0 |
GAIN | 3.0 dBi |
Radiation | OMNI |
Polarization | LINEAR |
Input Impedance | 50 Ω |
Mechanical Specifications | |
Input connector | SMAJ |
Antenna material | ABS & COPPER |
Working Temperature | -30℃~+80℃ |
Lightning Protection | DC Ground |
Weight | 17±1g |
