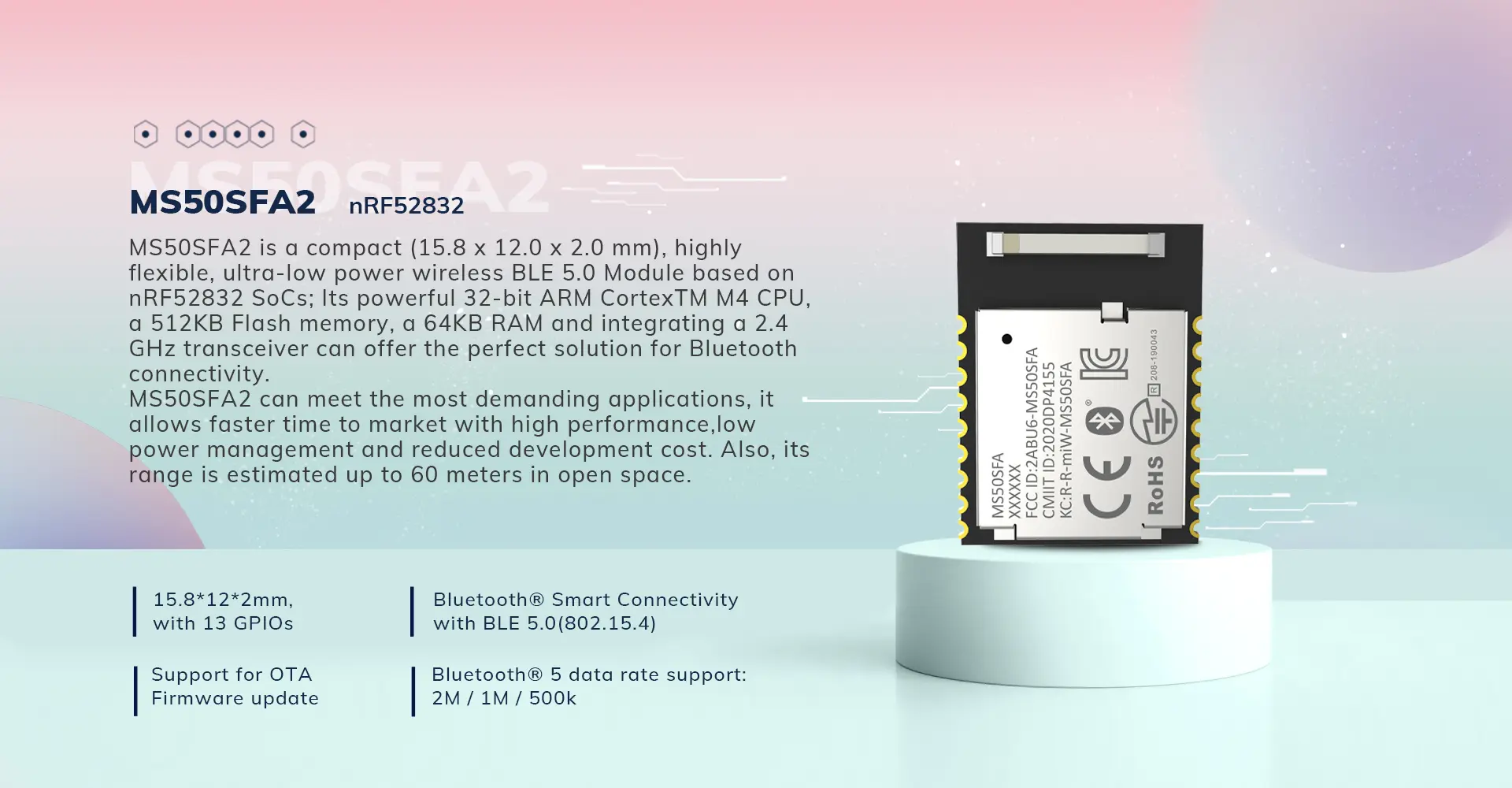

nRF52832-MS50SFA2

Small Size, Fully Certified, Cost-effective Bluetooth 5.4 Module

MS50SFA2 series brings out all nRF52810/nRF52832 hardware features and capabilities including high-speed 2 Mbps feature, ANT and 2.4 GHz proprietary protocols. Integrated DCDC inductor and an external 32.768K crystal oscillator reduce design complexity and BOM cost. Complete regulatory certifications enable faster time to market and reduced development risk of your Bluetooth design.


Specifications
Specifications
nRF52832-MS50SFA2Basic Parameters

Model NO.

MS50SFA2

Sensitivity(RX)

-96dBm

Antenna

Ceramic Antenna

Transmission Power

-40-+4dBm

SoCset

Nordic nRF52832

Current(TX)

0dBm-5.3mA/

Max Range

80M

Current(RX)

5.4mA

Dimension(mm)

15.8×12×2mm

GPIO

13

Flash

512kB

Certification

RoHS, REACH, CE, FCC, BQB, SRRC, TELE, AEC, KC

RAM

64kB

Hardware


    Master/Slave Firmware

Application



Security warning devices, smart meters, building automation, agricultural sensors, smart cities, retail store sensors, street lighting, environmental sensors, smart parking, smart medical



Download
Download
nRF52832-MS50SFA_Datasheet_K
Last Update Time  2024-06-28
File Size  1.97MB
Download Times  2
