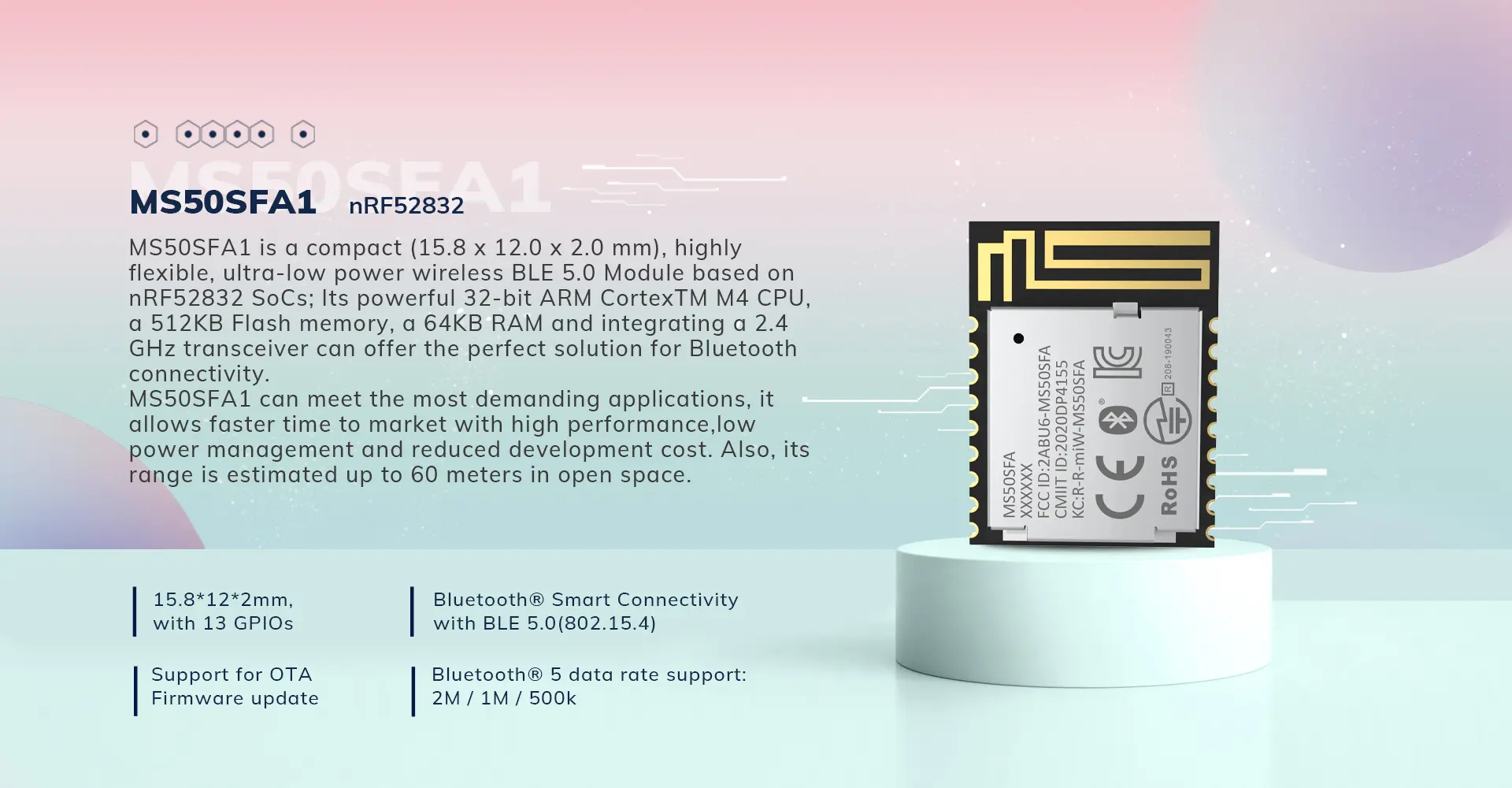

nRF52832-MS50SFA1

Small Size, Fully Certified, Cost-effective Bluetooth 5.4 Module

The MS50SFA is an RF transceiver using the nRF52832 which has an ARM core Cortex-M4F, the MCU has a faster operating speed, with the core running at up to 64Mhz. 512KB of FLASH program space, 64KB of RAM and other powerful supporting resources. It is suitable for low-power systems, ultra-low sleep current and low power consumption at runtime.


Specifications
Specifications
nRF52832-MS50SFA1 Basic Parameters

Model NO.

MS50SFA1

Sensitivity(RX)

-96dBm

Antenna

PCB

Transmission
Power

-40-+4dBm

SoCset


Nordic nRF52832

Current(TX)

                   0dBm-5.3mA

Max Range

80M

Current(RX)

                          5.4mA

Dimension(mm)

15.8×12×2mm

GPIO

13

Flash

512kB

Certification

RoHS, REACH, CE, FCC, BQB, TELEC, AEC, KC


RAM

64kB

Hardware

Master/Slave Firmware

Application

Security warning devices, smart meters, building automation, agricultural sensors, smart cities, retail store sensors, street lighting, environmental sensors, smart parking, smart medical



Download
Download
nRF52832-MS50SFA_Datasheet_K
Last Update Time  2024-09-29
File Size  1.97MB
Download Times  17
