Nordic nRF7002+nRF5340 Wi-Fi6+BLE Combo Module

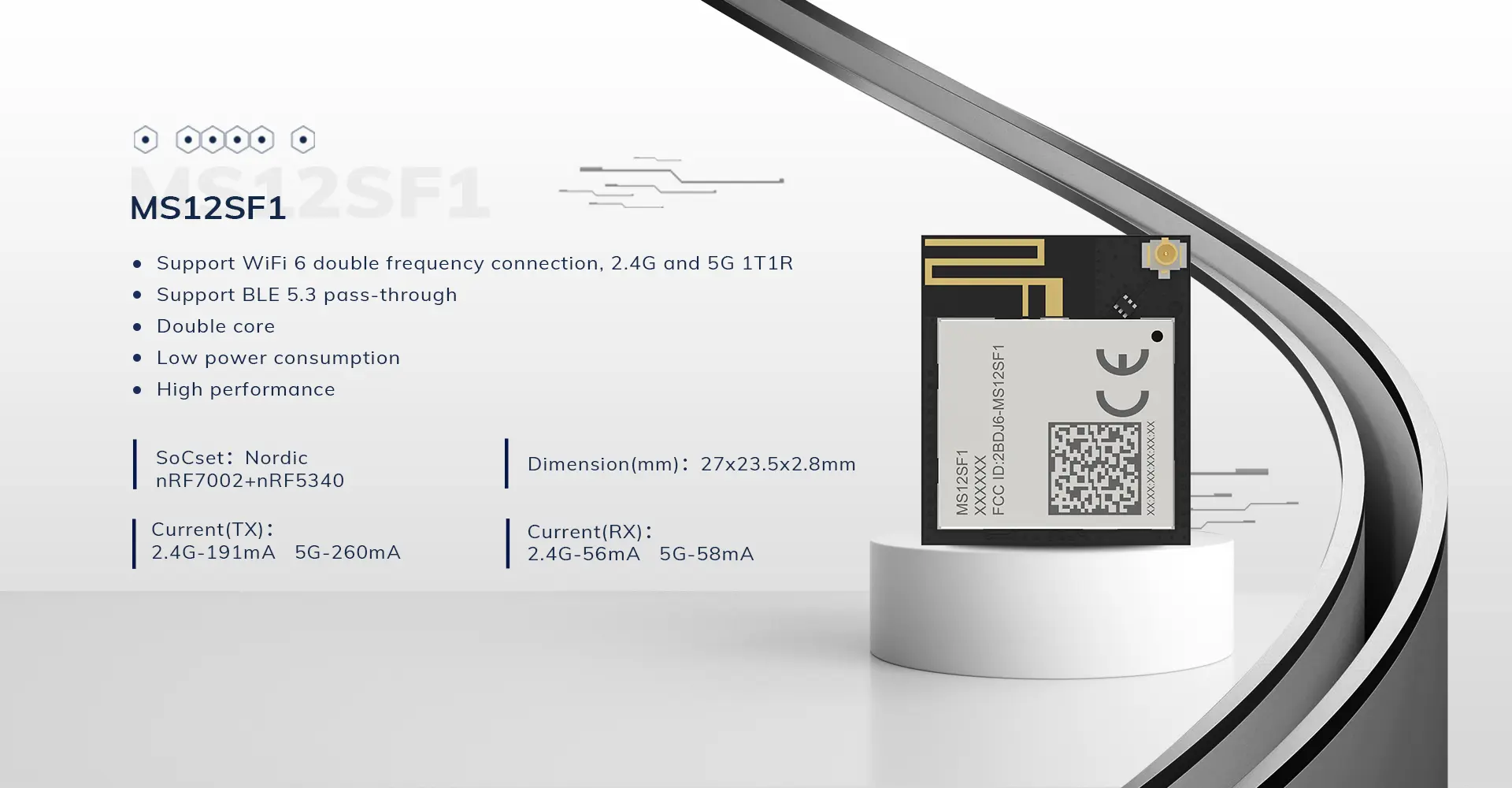

MS12SF1 is a high-performance, ultra-low-power Wi-Fi 6 and Bluetooth Low Energy combo module based on Nordic Semiconductor's nRF7002 and nRF5340 SoCs. It supports dual-band Wi-Fi 6 connectivity (2.4 GHz and 5 GHz) with AP/STA modes, as well as BLE master/slave modes.
The module integrates 1 MB Flash, 512 KB RAM, FPU, DSP instructions, and cache memory, enabling efficient execution of complex algorithms and high-performance applications. With rich GPIO resources and comprehensive peripheral support, MS45SF1 is ideal for demanding IoT devices requiring high processing performance, low power consumption, and flexible Bluetooth connectivity.
.webp)
MS12SF1 Basic Parameters | |||
Serial Model | MS12SF1 | Antenna | PCB+IPEX |
Chip Model | Nordic nRF7002+nRF5340 | Module size | 27x23.5x2.8mm |
Storage Capacity | 1MB+256kB | RAM | 512kB+64kB |
Receiving Sensitivity | -98dBm | Transmission Power | 21dBm |
Current(TX) | 2.4G-191mA 5G-260mA | Current(RX) | 2.4G-56mA 5G-58mA |
GPIO | 29 | Firmware | / |
Applications | Smart home, Intelligent wearable device, Consumer electronics, Intelligent medical, Security equipment, Automotive equipment, Sports fitness equipment, Instruments and apparatuses | ||
