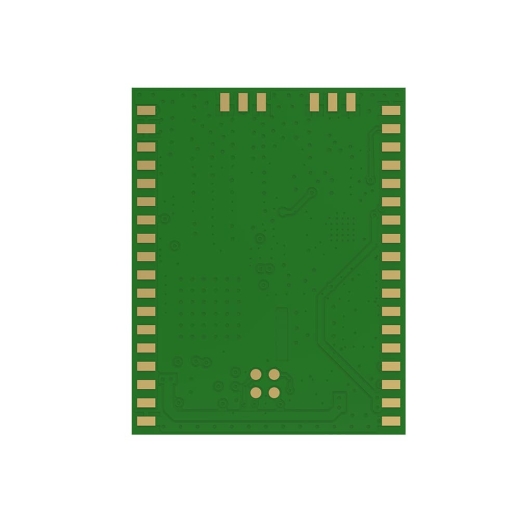

Design sketch

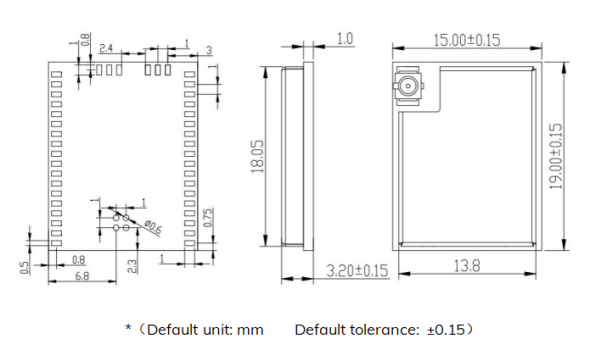

Dimensions

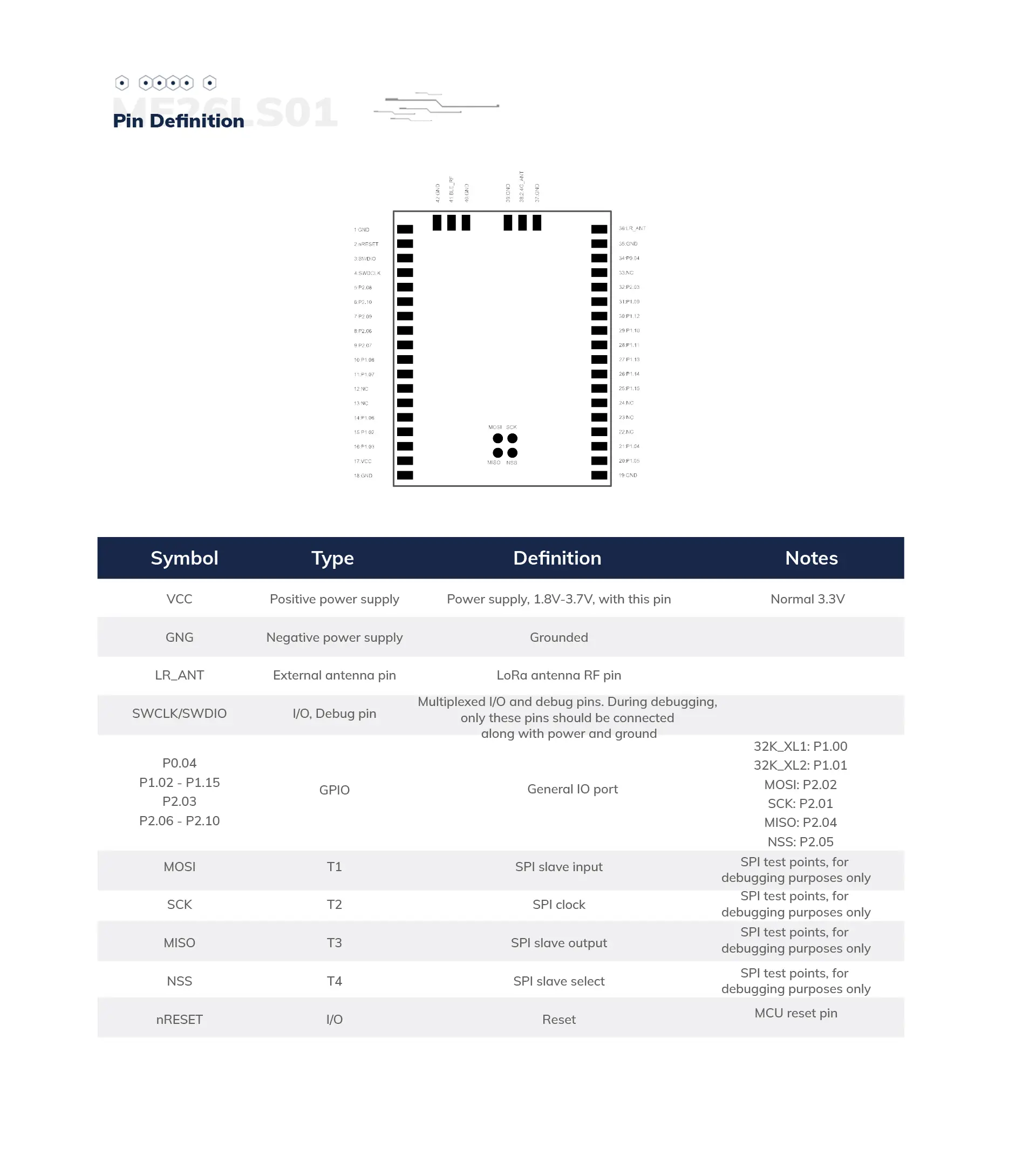

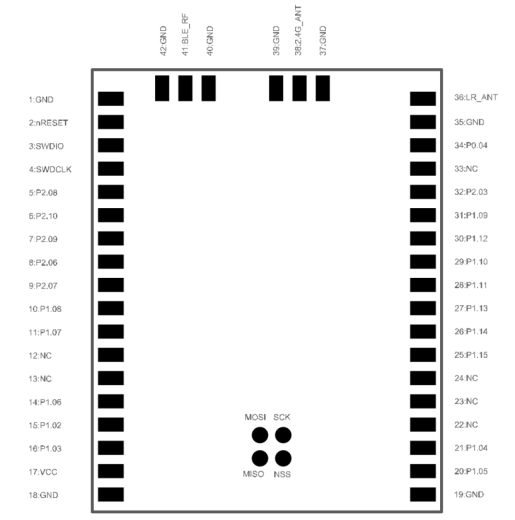

Pin Definition

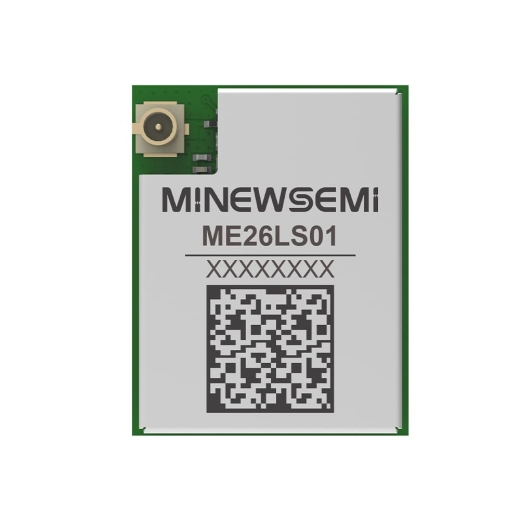

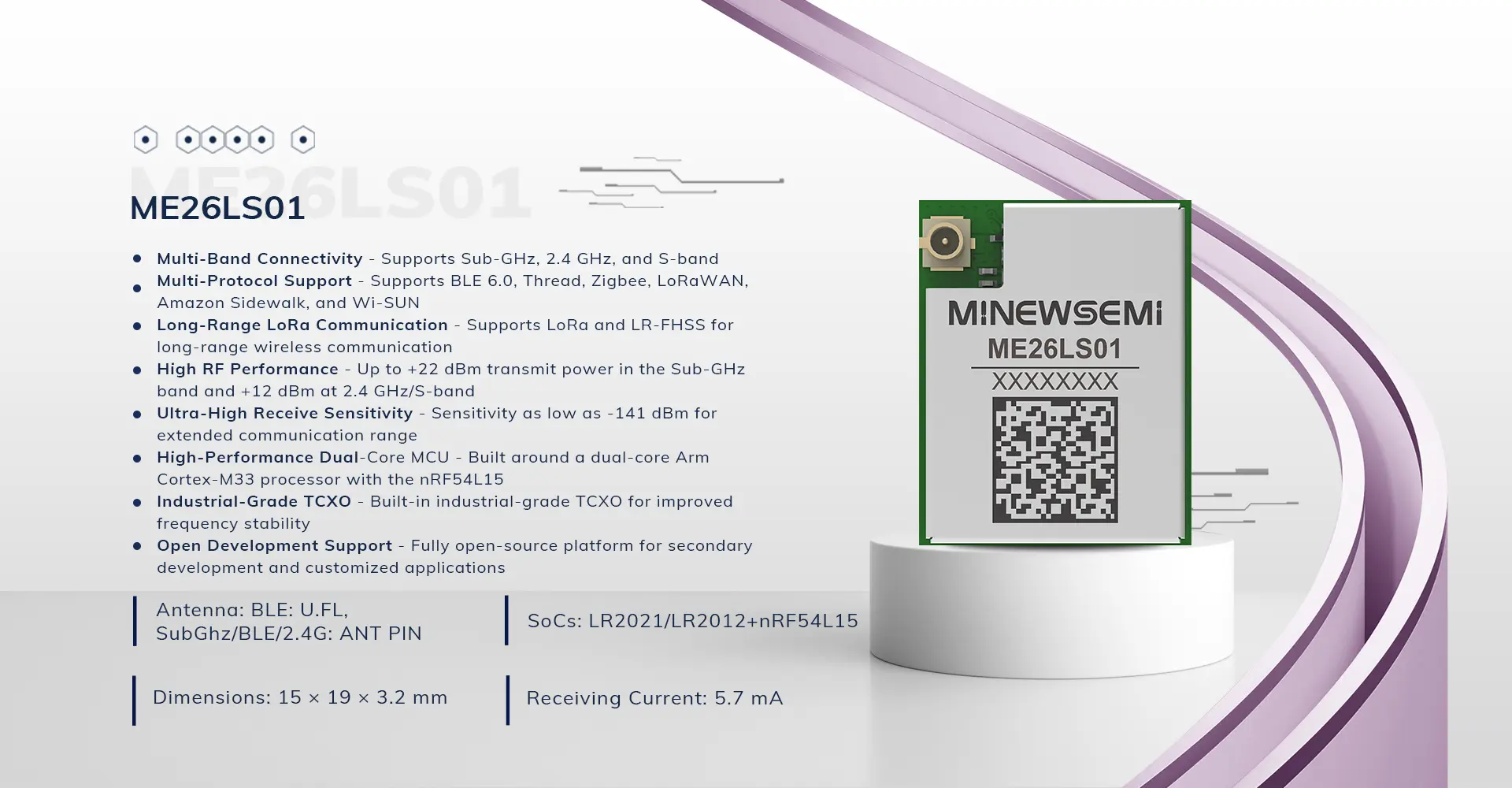

The ME26LS01 is a multi-band LoRa module based on Semtech's fourth-generation LR2021/LR2012 LoRa transceivers and the high-performance, low-power nRF54L15 host processor. It supports global ISM Sub-GHz and 2.4 GHz bands, along with BLE 6.0 and S-band satellite connectivity. With a compact form factor and only 5.9 mA receive current, the module delivers up to +22 dBm transmit power in the LoRa Sub-GHz band and up to +12 dBm at 2.4 GHz and S-band. Receive sensitivity can reach as low as -141 dBm. The ME26LS01 complies with the physical-layer requirements of the LoRaWAN® specification and supports FLRC and LR-FHSS, making it suitable for long-range LoRa® networking, LoRaWAN, Wi-SUN, and satellite communication applications.
Chip Model | LR2021/LR2012+nRF54L15 | Antenna | BLE: U.FL SubGhz/BLE/2.4G: ANT PIN |
Module Size | 15x19x3.2mm | GPIO | 21 |
Flash | 1.5MB | RAM | 256KB |
Receiving Sensitivity | BLE:- 104 dB, 125Kbps LoRa: -141dBm@SF12 | Transmission Power | BLE: -40-+8dBm SubGHz: +22dBm 2.4G/S-band: +12dBm |
Current(TX) | 105mA | Current(RX) | 5.7mA |
Electrical Specification
Parameter | Value | Notes |
Operating Voltage | 1.8V-3.7V | Standard power supply voltage 3.3V |
Working Temperature | -40℃~+85℃ | Storage temperature is -40℃~+125℃ |
Operating Frequency | SubGHz: 150MHz - 960MHz 2.4G S-band | SubGHz: optional frequency bands, Default set is 868MHz/915MHz BLE: U.FL antenna is used by default，If you need ANT Pin, please contact sales |
Transmission Power | BLE: -40-+8dBm SubGHz: +22dBm 2.4G/S-band:+12dBm | Configurable |
Current(RX) | 5.7mA | |
Current(TX) | 105mA | |
Module Dimensions | 15*19*3.2mm | |
Quantity of IO Port | 21 | GPIOs, I2C, I2S, PWM, UART etc. |
