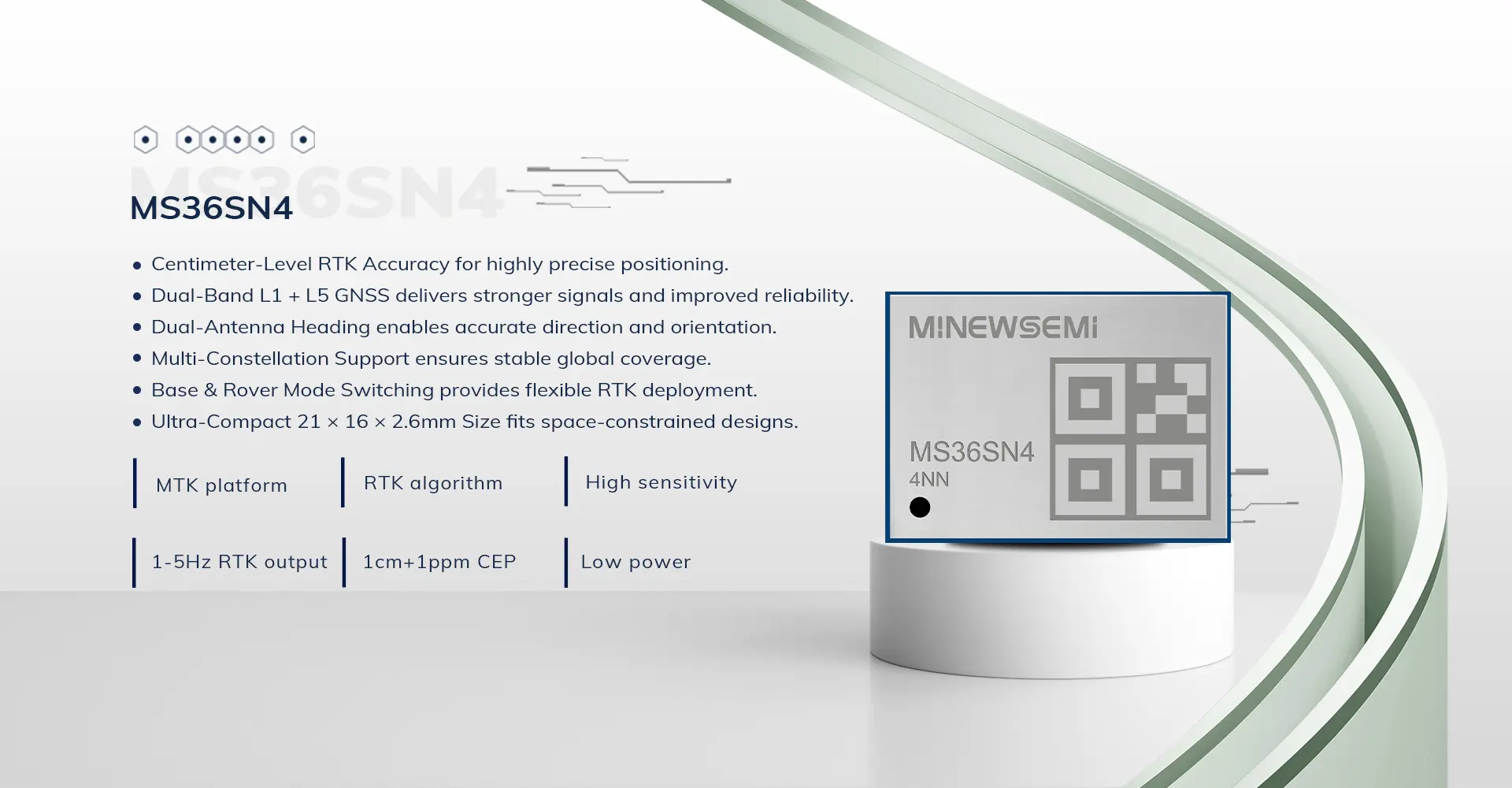

Dual-antenna GNSS/GPS Module Provides Accurate Positioning and Orientation Data
The MS36SN4 is a GNSS module with built-in RTK positioning, supporting multi-constellation positioning on L1 and L5 bands. It employs a 12nm GNSS SoC chip with a powerful 530MHz ARM Cortex-M4 processor, including FPU and MPU functions. Compatible with GPS, BeiDou, GLONASS, Galileo, and QZSS systems, the module utilizes RTK technology for centimeter-level accuracy and low power use. Its dual chips enable precise azimuth and static attitude measurement. With exceptional performance, the MS36SN4 suits applications like drones, lawnmowers, and precision agriculture.
.webp)
Parameter | Specification |
Engine | MTK 530MHz ARM Cortex-M4 FPU and MPU*2, 12nm advanced process |
GNSS | GPS: L1 C/A, L5 BDS: B1I, B2a, GLONASS: L1 GALILEO: E1, E5a QZSS: L1 C/A, L5 SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM NAVIC*: L5 (optional) |
Working Frequency | GPS/QZSS L1: 1575.42±1.023MHz L5: 1176.45MHz±10.23MHz BDS B1I: 1561.098MHz±2.046MHz B2a: 1176.45MHz±20.46MHz GLONASS L1: 1601.71875MHz±3.91175MHz GALILEO E1: 1575.42±2.046MHz E5a: 1176.45MHz±10.23MHz NAVIC*: L5 (optional) L5: 1176.45MHz±10.23MHz |
Sensitivity | Cold start：-148dBm Recapture：-160dBm Tracking：-165dBm |
First Location Time | Cold start: ≤27 seconds; Hot start: ≤2 seconds; AGPS assist: <6 seconds; |
Fixed Solution Convergence Time | ≤10s |
Position Accuracy | Point Positioning: Open sky: ＜1.5 m CEP complex urban environment: ＜2.5 m CEP RTK： Horizontal positioning accuracy：1cm+1ppm CEP Elevation accuracy：2cm+1ppm CEP |
Orientation Accuracy | 0.2 degree /1m base line |
Velocity Accuracy | ＜0.05 m/s |
Time Accuracy | 20ns |
Operating Temperature | -40℃ to +85℃ |
Refresh Rate | GNSS: 1-10Hz IMU：50Hz/100Hz/200Hz |
Connector | UART*3，PPS |
Baud Rate | Main serial port 115200bps (default) |
RTCM Differential Output | Support RTCM2.x, RTCM3.x output, support MSM4/MSM7 |
Support protocol | NMEA 0183 Protocol Ver. 4.1 RTCM 3.3 |
