Ultra-compact GNSS module with multi-constellation positioning

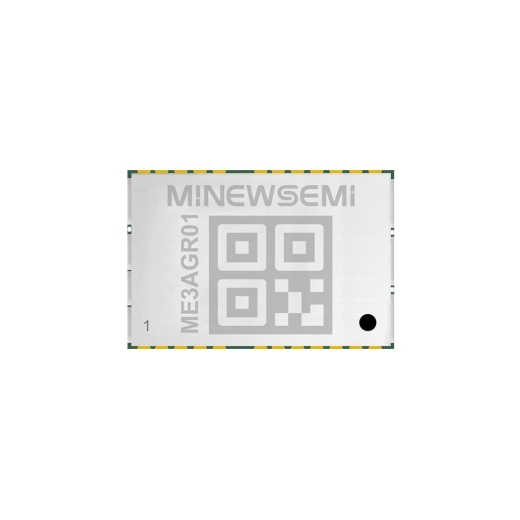

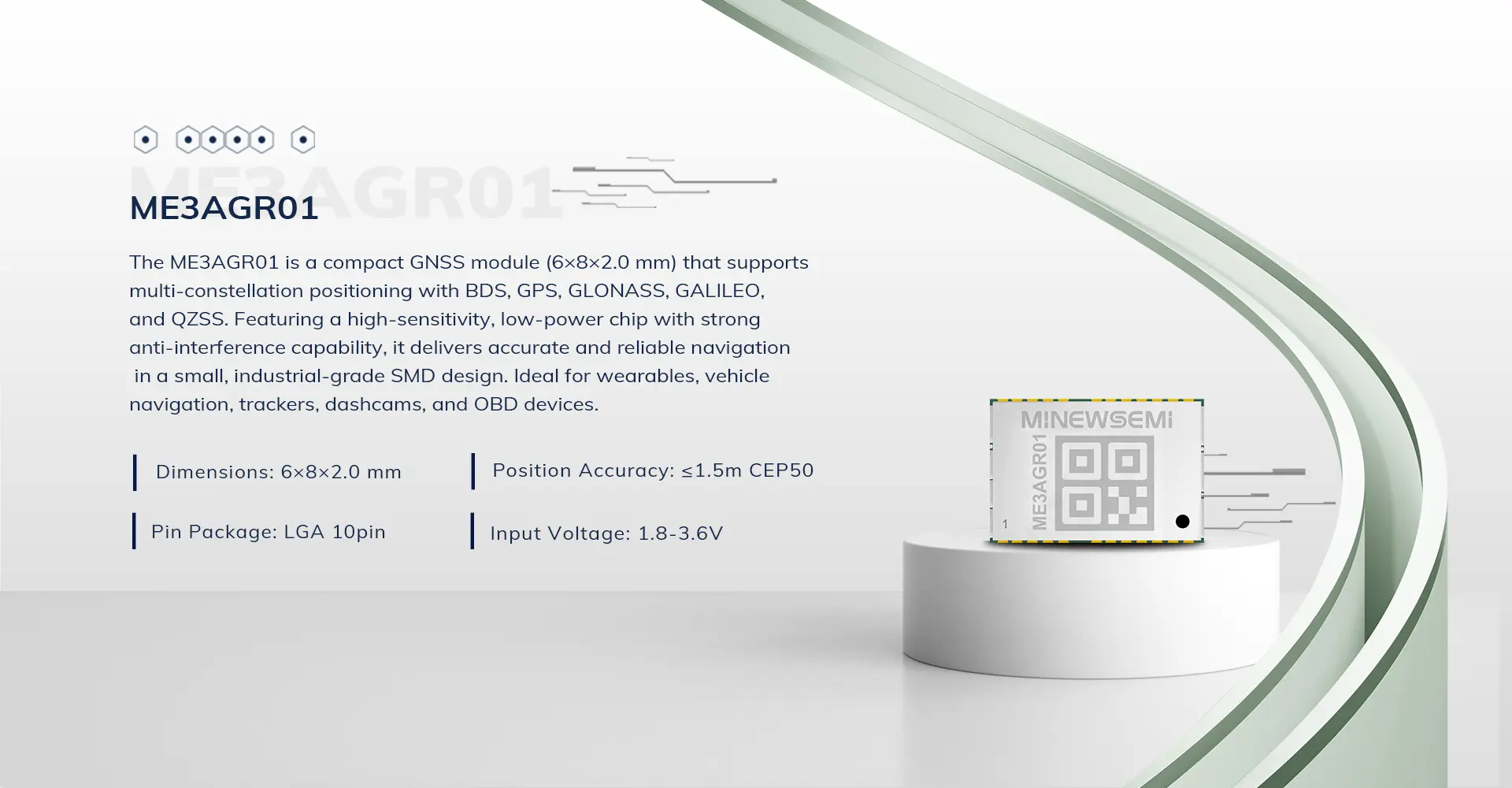

The ME3AGR01 is a compact GNSS navigation and positioning module designed to deliver reliable performance across diverse applications. Supporting multi-constellation reception, it enables simultaneous tracking of BDS, GPS, GLONASS, GALILEO, and QZSS, ensuring precise and stable positioning through multi-system integration.
Built with a high-sensitivity, low-power GNSS chip and integrated RF components, the module combines strong anti-interference capability with excellent power efficiency. Its standard SMD industrial-grade design, manufactured with RoHS compliance, measures only 6 × 8 × 2.0 mm, making it ideal for space-constrained devices.
With its combination of high performance, compact size, and low power consumption, the ME3AGR01 is well-suited for a wide range of applications, including wearable devices, vehicle navigation systems, trackers, dashcams, and OBD solutions.

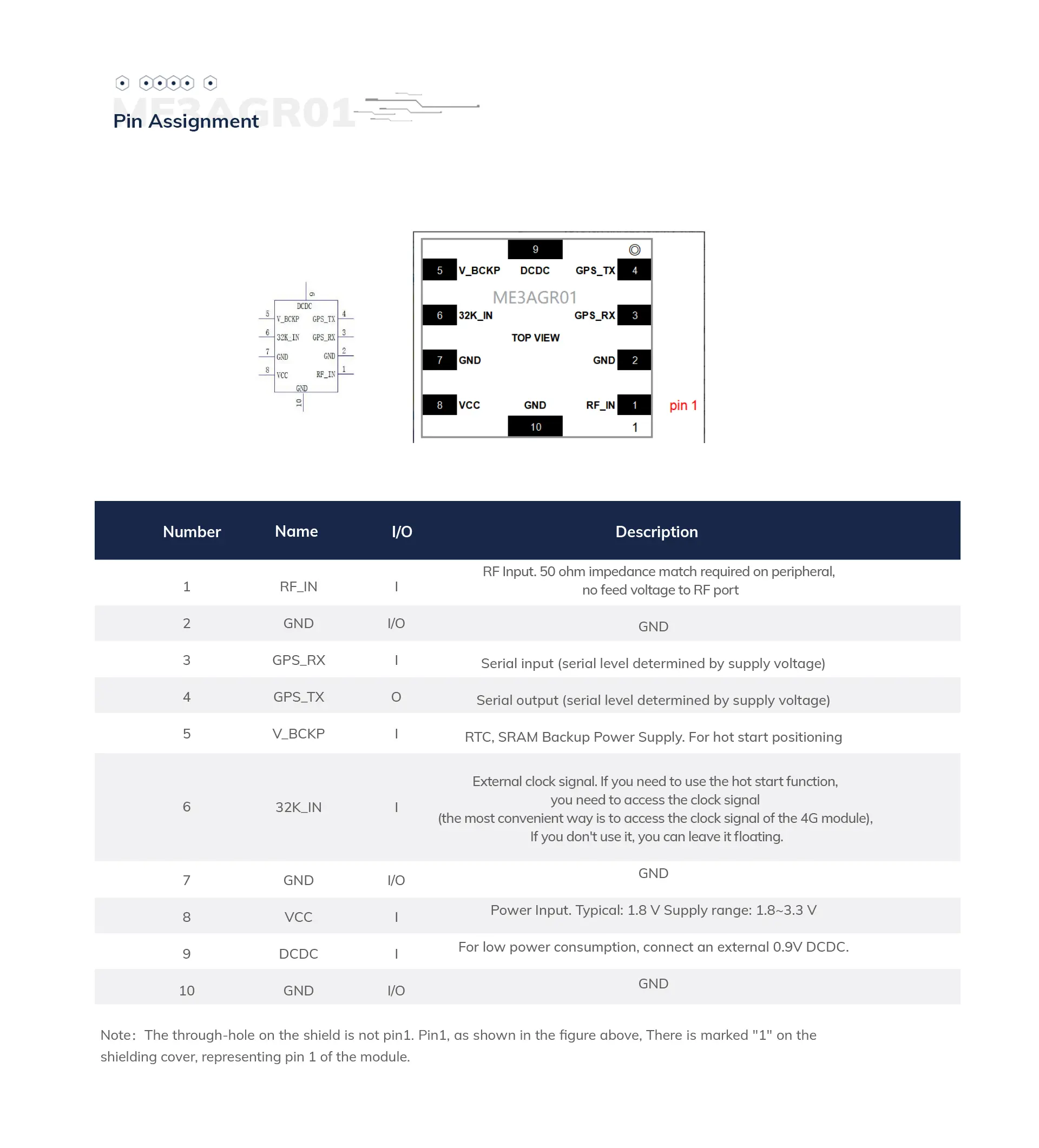

Parameter | |
Update Frequency | 1-Hz~10 Hz |
Pact | NMEA-0183 |
Satellite systems | BDS: B1I , B1C GPS: L1C/A, L1C GLONASS: G1 Galileo: E1B/C QZSS: L1C/A |
Precision indicators | |
Position Accuracy | ≤1.5m CEP50 |
1PPS | 20ns (24h RMS) |
Rate Accuracy | 0.1m/s |
Cold Start | |
TTFF（s） | 26 （@-130dBm） |
Hot Start | |
TTFF（s） | 1 （@-130dBm） |
Recapture | |
TTFF（s） | 1 （@-130dBm） |
CNR | |
Signal Strength（dBm） | -130 |
CNR（dBc/Hz） | 40 |
Sensitivity (typical) | |
Cold Start(dBm) | -149dBm@GNSS |
Trace(dBm) | -165dBm@GNSS |
Recapture | -159dBm@GNSS |
Application Limitations | |
Acceleration | ≤4 g |
High degree | 18,000 m |
velocity | 500 m/s |
Power Supply | |
Input Voltage | 1.8-3.6 V (Recommended minimum voltage 1.9V, not less than 1.80V) |
Input voltage @ external DCDC | 0.9-3.6V (External DCDC voltage above 0.9V, not below 0.90V) |
Capture phase power consumption | 144mW@3.3V |
53mW@external DCDC | |
80mW@1.9V | |
Tracking Phase Power Consumption | 110mW@3.3V |
29mW@external DCDC | |
44mW@1.9V | |
Input Gain | 15dB~35dB |
Input Impedance | 50Ω |
Input power (max.) | 10 dBm |
Communication Interface | |
UART ⅹ1 | |
Environmental indicators | |
Operating temperature | -40℃ ~+85℃ |
Storage temperature | -40℃ ~+85℃ |
Humidity level | 5%~95% non-glutinous exposure |
Vibratory | GB2423.10 |
Impact | GB2423.5 |
Accreditation | RoHS and REACH compliant |
