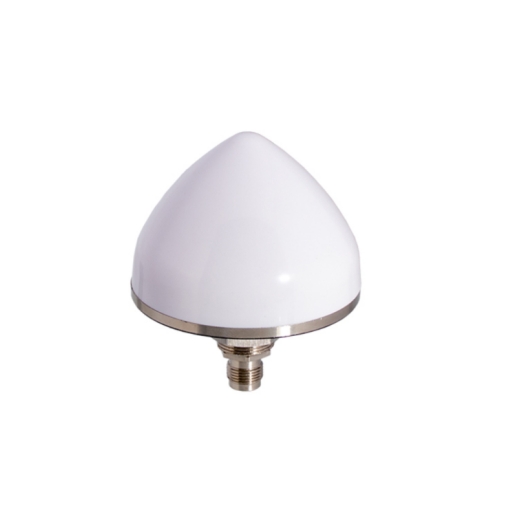

AH612-GNSS High-Precision Measuring Antenna

Full-band High-Precision GNSS Antenna



The AH612 GNSS High-Precision Antenna features advanced multi-feedpoint technology and supports L1, L2/L5, and L-band signals across BeiDou, GPS, GLONASS, and GALILEO systems. It integrates multi-stage filtering and a low-noise amplifier to deliver excellent out-of-band signal suppression and strong anti-interference performance. Designed for reliable operation in harsh electromagnetic environments, the AH612 ensures multi-system compatibility and meets the demands of high-precision GNSS positioning applications.




Product Overview
Product Overview

Specifications
Specifications
AH612-GNSS High-Precision Measuring Antenna Basic Parameters

Antenna

Supported positioning signal bands

GPSL1/L2/L5;

BDSB1/B2/B3;

GLONASSL1/L2/L3;

GalileoEl/E5/E6

L-Band

Peak Gain

≥2.5 dBi

Polarization

RHCP

Axial Ratio@zenith

≤1.5dB

Azimuth Coverage

360°

Impedance

50 ohm

LNA

Frequency Range

1164MHz~1278MHz

1525MHz~1615MHz

LNA Gain

35±3.0dB Typ. @25°C

Group Delay Variation

≤5ns

Noise Figure

≤1.5 dB@25°C , Typ.Pre-filtered

Output VSWR

≤1.8:1 typ. 2.0:1max

Operation Voltage

3.0~12.0V DC, testimonials 3.3V or 5.0V

Operation Current

≈45mA

Mechanicals & Environmental

Dimension

Φ66.6mm*78.5mm

Connector

TNC-K (External threaded bore)

Radome

ASA+Aluminum housing

Weight

≤400g

Attachment Method

Threaded screwing

Operating Temp

40℃~+85℃

Storage Temp

45℃~+85℃

Humidity

95% No-condensing

Waterproof

IP67
