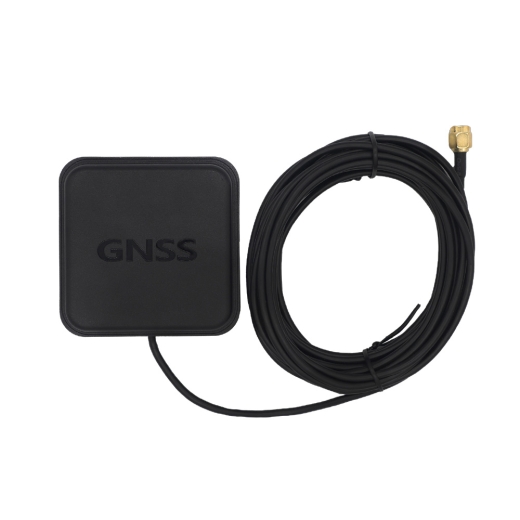

Design sketch
Multi-GNSS Support
Compatible with GPS, BeiDou, and GLONASS for broad satellite coverage.
Stable Signal Performance
VSWR ≤ 1.5, up to 3.5 dBi gain, and 50Ω impedance for efficient signal reception.
Omnidirectional Reception
Ceramic antenna with RHCP (Right-Hand Circular Polarization) for reliable positioning performance.
Compact & Reliable Design
Durable ceramic construction for stable operation in positioning applications.
Wide Application Support
Ideal for navigation, tracking, and GNSS-enabled devices.
RoHS Compliant
Meets RoHS 2015/863/EU environmental standards.
Electrical Specifications | |
Frequency Range | GPS/Beidou/glonass/galileo/qzss L1/L5： 1176.45~1576.45MHz |
VSWR | ≤1.5 |
GAIN | ≤3.5dBi |
LNA GAIN | 28±3dBi |
Axial Ratio @ Zenith | ≤5 |
Output VSWR | ≤2.0 |
Noise Figure | ≤1.8dB |
Polarizatin | RHCP |
Input Impedance | 50 Ω |
Supply Voltage | 3-5V |
Operating Current | ≤35mA |
Mechanical Specifications | |
Input connector | SMAJ |
Antenna Structure | Ceramic Overlapping Structure |
Antenna Element | 25*25*4&35*35*4 |
Cable Length | 3m |
Working Temperature | -30℃~+80℃ |
Working Humidity | 40~85% |
Weight | 113.3±1g |
