Design sketch
Dimensions

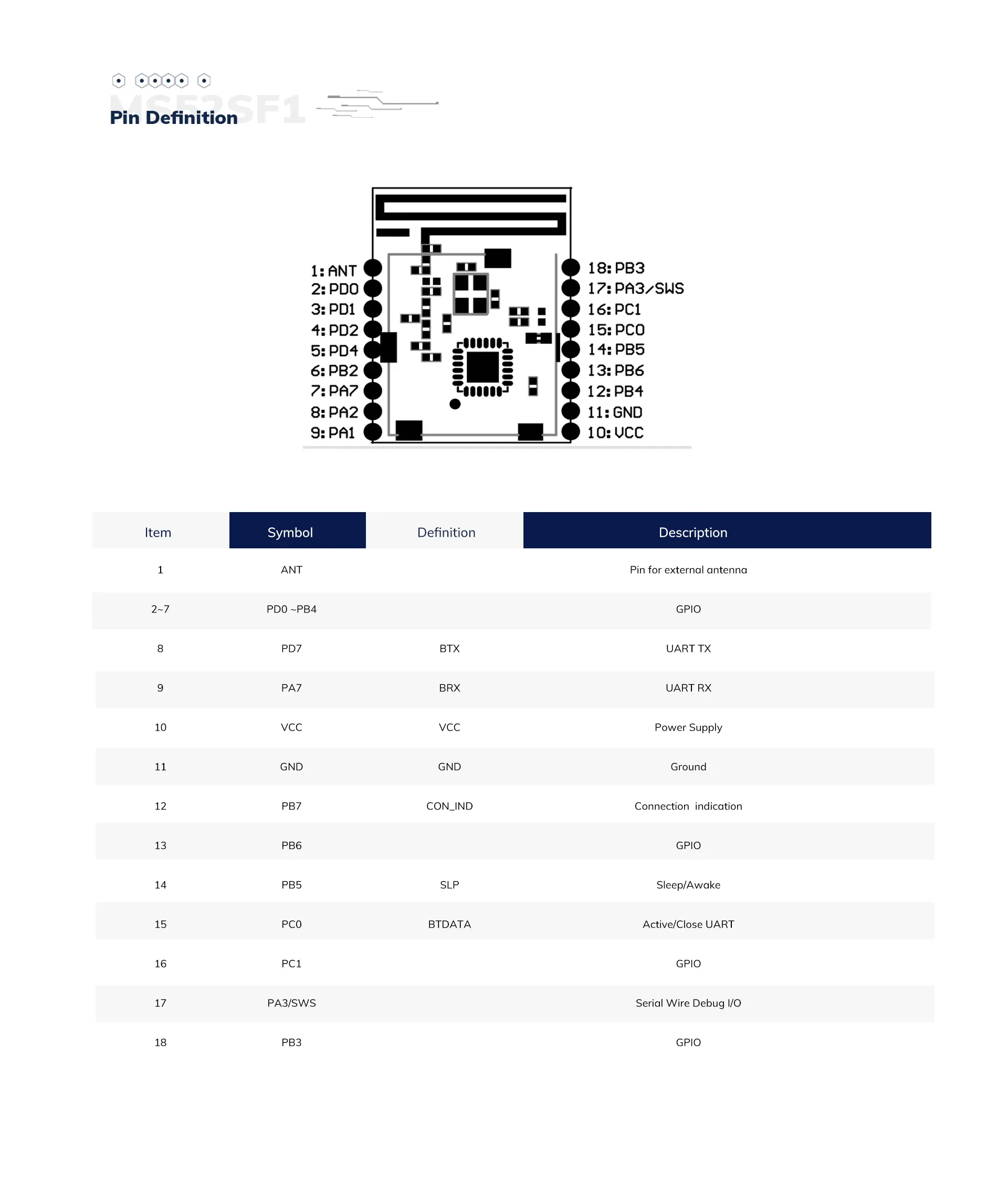

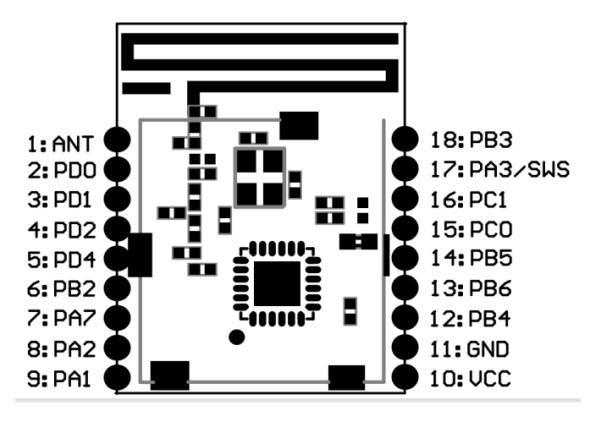

Pin Definition
Package

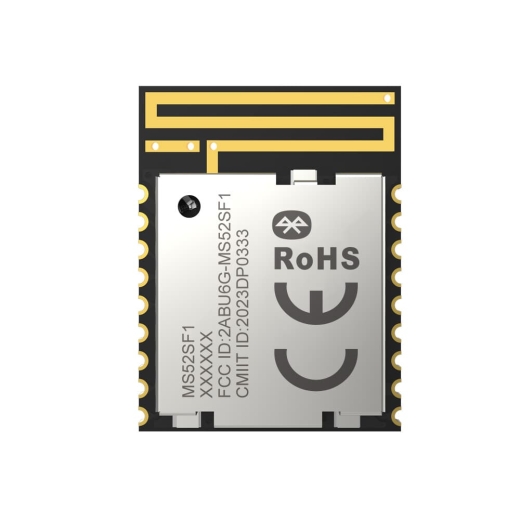

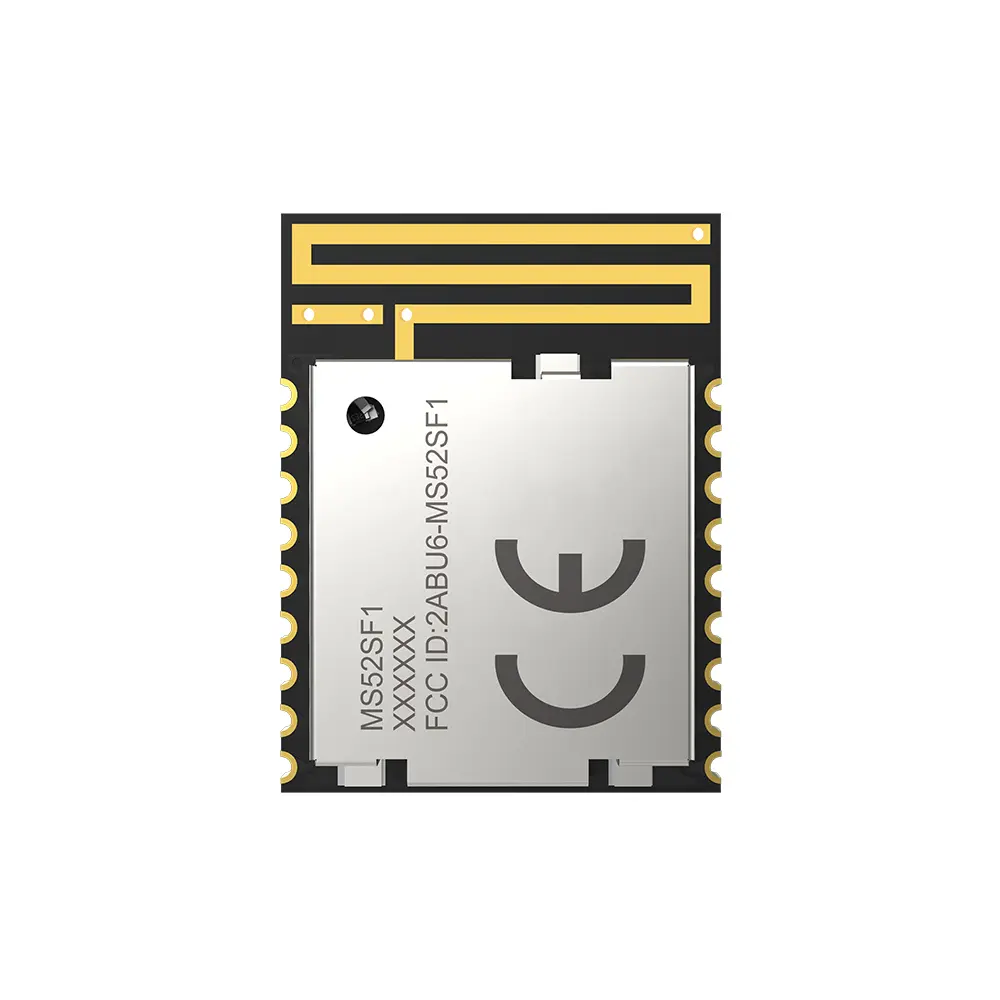

MS52SF1 is a module with Bluetooth slave device firmware designed using Tailing Micro TLSR8208G chip. It has broadcast and connection status, and uses UART interface to transparently transmit data between main devices such as mobile phones/tablets and MCU. Bluetooth functionality can be added to the product without the need for Bluetooth development, providing convenience for product development. The device broadcast communicates with the MCU through the UART interface. In broadcast mode, the MCU can set and view the module's broadcast name in command format, set custom data, modify parameters such as broadcast interval and connection interval through the UART interface. When a host connects to a device through Bluetooth, the device will act as a bridge between the host and the MCU for transparent data transmission.
.webp)
MS52SF1 Specifications | |||
Model Series | MS52SF1 | Antenna | PCB |
SoC | Telink TLSR8208G | Size | 15.8×12×2mm |
Flash | 512kB | RAM | 20kB |
RX Sensitivity | -97dBm | TX Power | -45~+10dBm |
TX Current Consumption | 0dBm-9.5mA | RX Current Consumption | 9.1mA |
GPIO | 14 | Firmware | Slave Uart |
Applications | Smart Home, Advanced Wearables, Consumer Electronics Medical, Security Device, Automotive Equipment, Industrial | ||
.webp)
