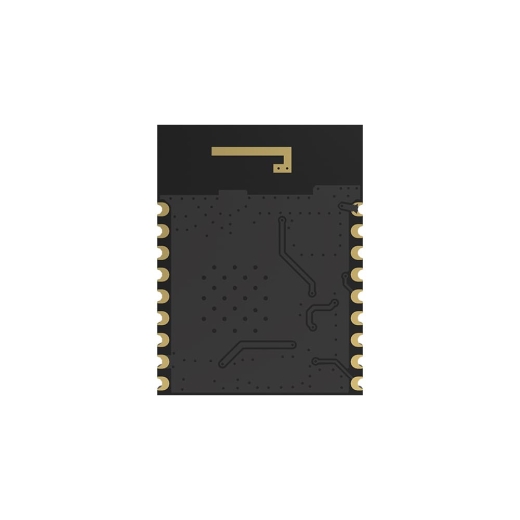

Design sketch

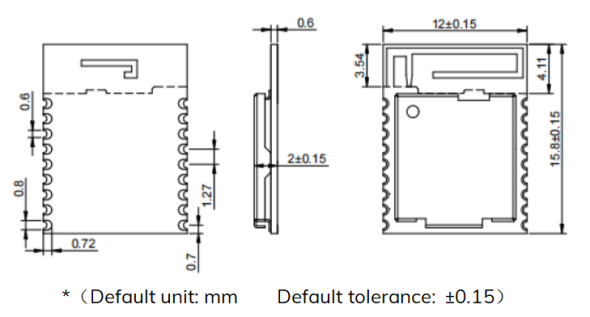

Dimensions

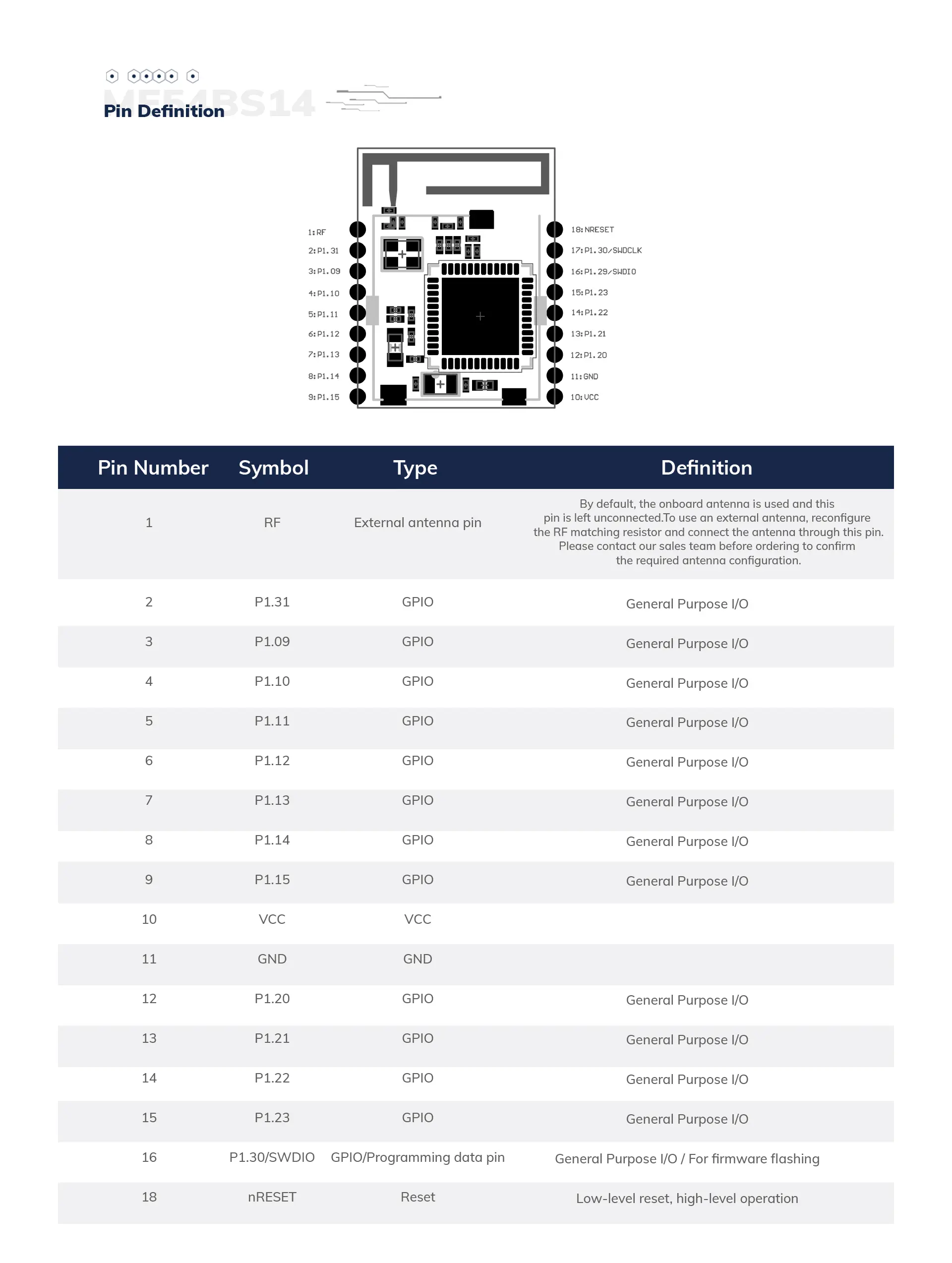

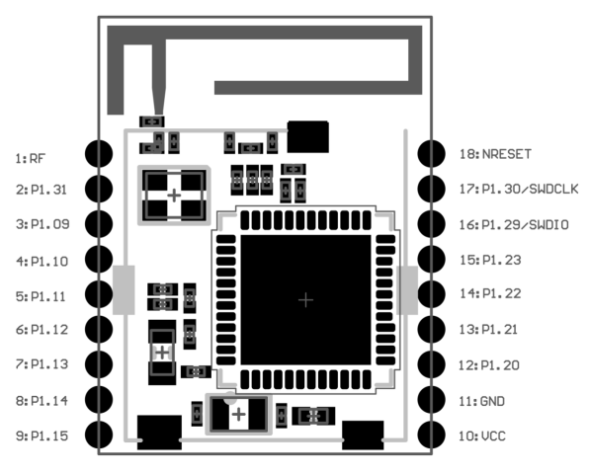

Pin Definition

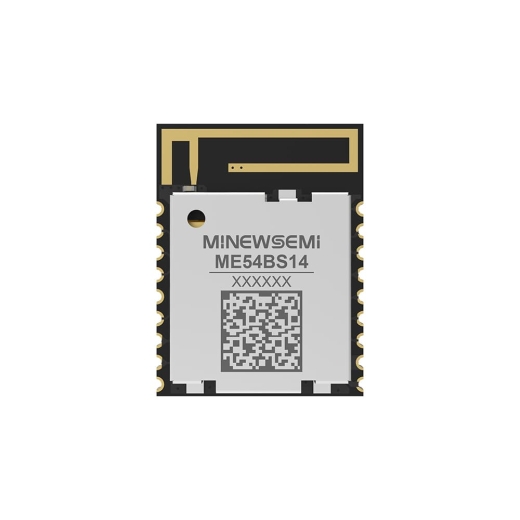

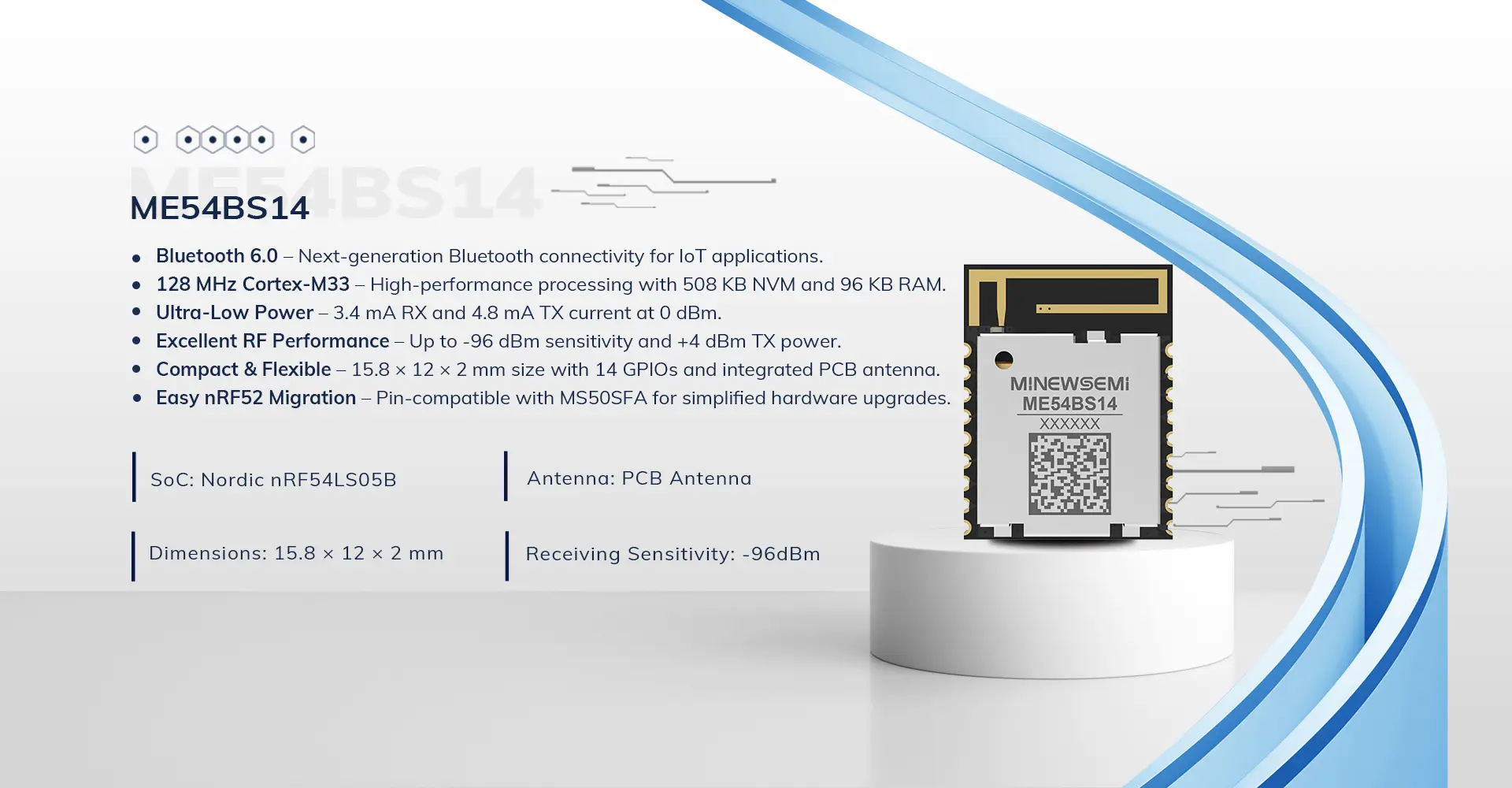

The ME54BS14 is a highly flexible, ultra-low-power, and cost-effective Bluetooth module based on the Nordic nRF54LS05B. It features a 128 MHz Arm® Cortex®-M33 processor, 508 KB NVM, and 96 KB RAM, delivering an excellent balance of performance and energy efficiency.
With an onboard PCB antenna, compact integrated design, outstanding RF performance, ultra-low power consumption, and rich peripheral interfaces, the ME54BS14 provides an ideal Bluetooth solution for a wide range of IoT applications.
Chip Model | nRF54LS05B | Antenna | PCB |
Module Size | 15.8×12.0×2mm | GPIO | 14 |
NVM | 508KB | RAM | 96 KB |
Receiving Sensitivity | -96dBm | Transmission Power | ~ +8dBm |
Emitting Current | 0dBm-4.8mA | Receiving Current | 3.4mA |
Parameter | Values | Notes |
Working Voltage | 1.7V-3.6V | To ensure RF work, it is recommended that the supply voltage should not be lower than 2.3V. |
Working Temperature | -40℃~+85℃ | Storage temperature: -40°C to +105°C |
Transmission Power | ~ +8dBm | Configurable |
Current(RX) | 3.4mA | RF receiving current at 3.3 V in 1 Mbps mode |
Current(TX) | 4.8mA | RF transmission current at 3.3 V in 0 dBm output power mode |
Module Dimensions | 15.8*12.0*2mm |
