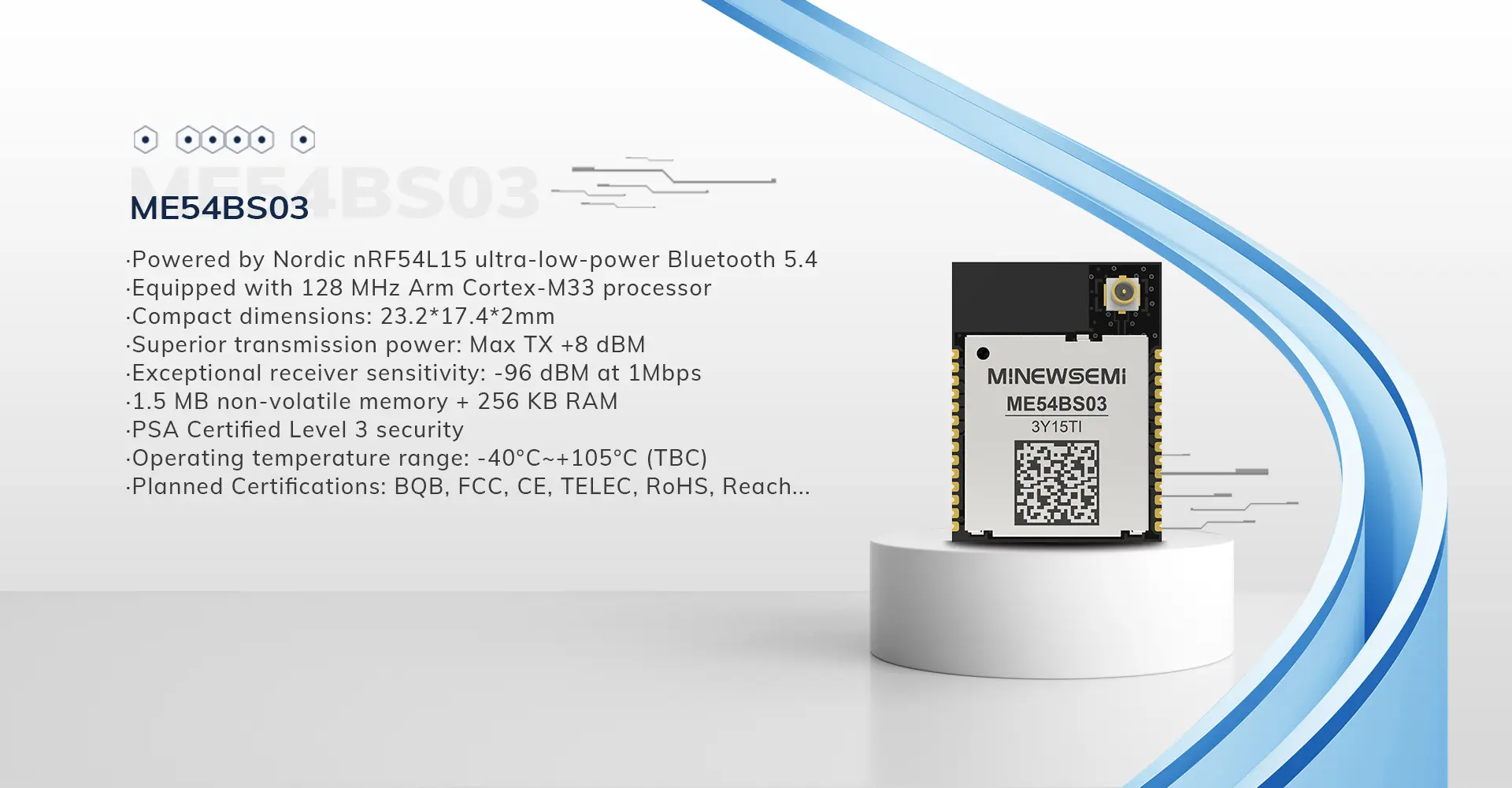

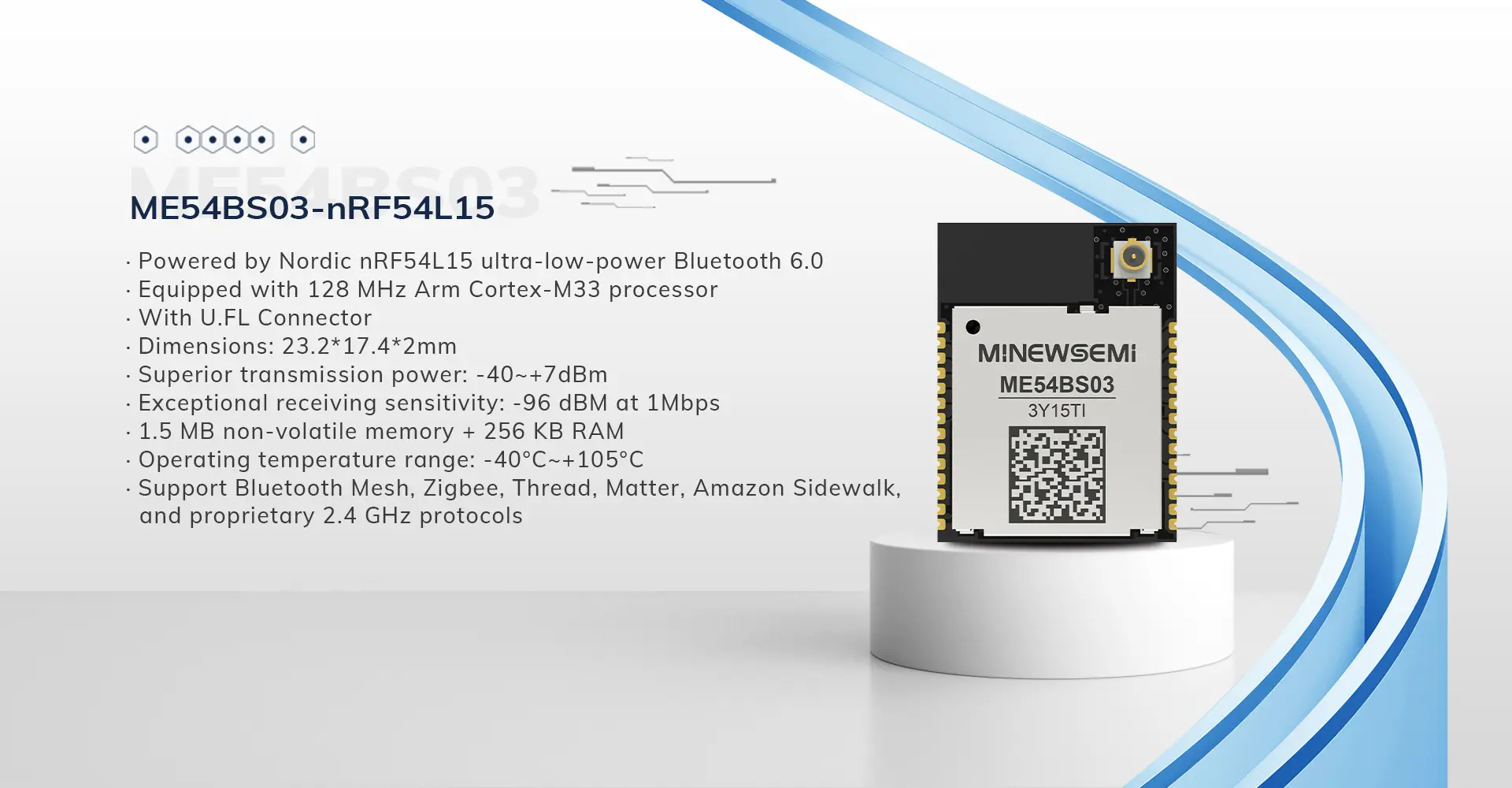

nRF54L15-ME54BS03

High Cost Performance, Ultra-low Power Bluetooth 5.4 LE Module with IPEX Connector

ME54BS01 is a highly flexible, ultra-low power, cost-effective Bluetooth module based on nRF54L15. Its powerful Arm® Cortex®-M33 CPU has a core running speed of 128Mhz. In addition, it also has 1.5MB NVM space and 256 KB RAM. It is also designed for PSA Level 3 certification and has high security protection. The hardware is equipped with an onboard antenna, and the integrated design highlights the higher performance of the nRF54 series and provides more GPIO development and use. At the same time, the ultra-low system power consumption and excellent RF performance as well as other powerful supporting resources can provide a perfect solution for Bluetooth connection.




Specifications
Specifications
nRF54L15-ME54BS03Basic Parameters


Chip Model

nRF54L15

Antenna

IPEX

Module Size

23.2×17.4×2mm

GPIO

19

Flash

1.5MB

RAM

256KB

Receiving Sensitivity

-98dBm

Transmission Power

-46 ~ +8dBm

Emitting Current

12.7mA

Receiving Current

6mA


Electrical Specification


Parameters

Values

Notes

Working Voltage

1.7V-3.6V

To ensure RF work, supply voltage suggest not lower than 2.3V

Working Temperature

-40℃~+85℃/

-40℃~+105℃

85/105°C optional, storage temperature is -40℃~+105℃

Transmission Power

-46 ~ +8dBm

Configurable

Current(RX)

6mA

RF receiving current under 1Mbps pattern

Current(TX)

12.7mA

RF transmission current under 0dB pattern

Module Dimension

23.2*17.4*2mm


Quantity of IO Port

19


GPIO output voltage

1.7V-2.8V

GPIO up to 2.8V input/output voltage



Download
Download
nRF54L15-ME54BS03_Datasheet_K
Last Update Time  2024-11-11
File Size  2.31MB
Download Times  3
