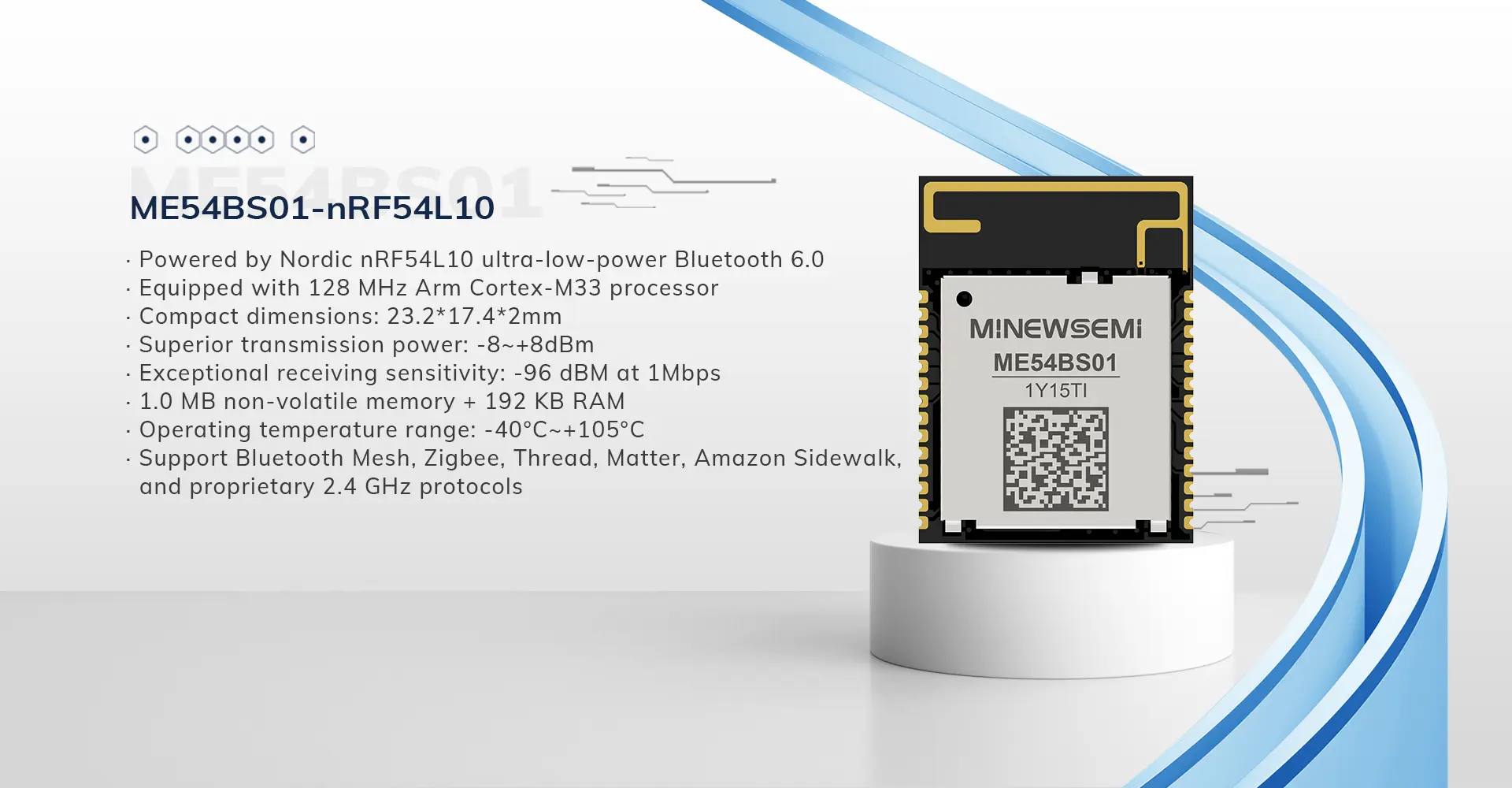

ME54BS01-nRF54L10 is an ultra-low power, cost-effective Bluetooth module built on Nordic's advanced nRF54L10 SoC. Powered by a 128 MHz Arm® Cortex®-M33 CPU, it offers enhanced processing capabilities for more demanding Bluetooth applications. The module integrates an onboard antenna in a compact design, delivering strong RF performance and reliable connectivity. With its balanced combination of performance, power efficiency, and scalability, ME54BS01-nRF54L10 is well-suited for next-generation IoT devices that require both flexibility and robustness.
.webp)
Chip Model | nRF54L10 | Antenna | PCB |
Module Size | 23.2×17.4×2mm | GPIO | 19 |
Flash | 1.0MB | RAM | 192KB |
Receiving Sensitivity | -96dBm | Transmission Power | -8 ~ +8dBm |
Emitting Current | 0dBm-5mA | Receiving Current | 3.2mA |
Parameters | Values | Notes |
Working Voltage | 1.7V-3.6V | To ensure RF work, supply voltage suggest not lower than 2.3V |
Working Temperature | -40℃~+105℃ | Operating temperature from -40°C to 105°C |
Transmission Power | -46 ~ +8dBm | Configurable |
Current(RX) | 3.2mA | RF receiving current under 1Mbps pattern |
Current(TX) | 0dBm-5mA | RF transmission current under 0dB pattern |
Module Dimension | 23.2*17.4*2mm | |
Quantity of IO Port | 19 | |
GPIO output voltage | 1.7V-2.8V | GPIO up to 2.8V input/output voltage |
