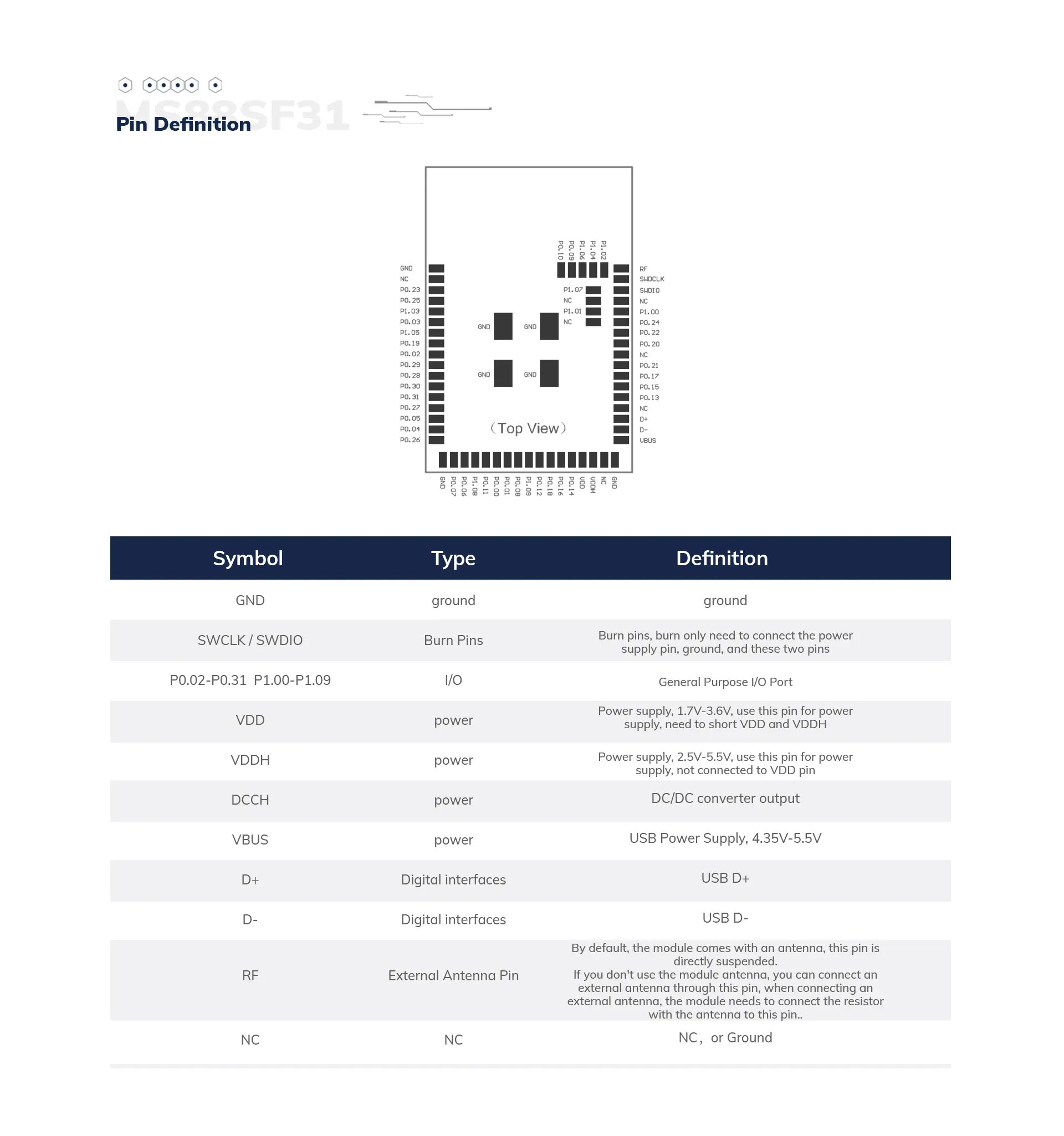

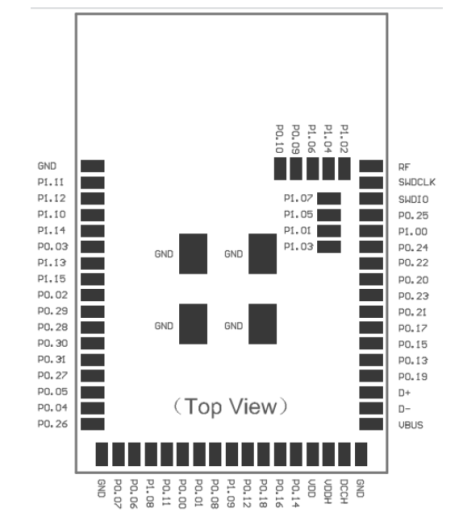

  • Pin Definition
  • Package

nRF52833-MS88SF31

42 I/O Ports, Multi-protocol Bluetooth 5.4 Module

The MS88SF3 is a low-power, cost-effective wireless BLE 5.4 module based on the nRF52833 SoC. It has an ARM core Cortex-M4F RF transceiver, the core running speed of 64Mhz, in addition, it also comes with 512kB FLASH program space, 128kB RAM, integrated 2.4 GH transceiver, and other powerful supporting resources for Bluetooth connectivity to provide the perfect solution. nRF52833 can support ANT, BLE, BLE MESH, ZIGBEE and THREAD protocols, BLE MESH, ZIGBEE and THREAD protocols. With a data rate of 125kbps, its range in open space is estimated to be up to 250 meters.




Specifications
Specifications
nRF52833-MS88SF31Basic Parameters

Model NO.

MS88SF31

Sensitivity(RX)

-103dBm/-96dBm

Antenna

PCB

Transmission Power

-40-+8dBm

SoCset

Nordic nRF52833

Current(TX)

0dBm-4.9mA/

Max Range

300M

Current(RX)

4.6mA

Dimension(mm)

18.5x12.5x2mm

GPIO

42

Flash

512KB

Certification

CEFCCBQB, RoHS, REACH

RAM

128kB

Hardware

None

Application

 Security warning devices, smart meters, building automation, agricultural sensors, smart cities, retail store sensors, street lighting, environmental sensors, smart parking, smart medical



Download
Download
nRF52833-MS88SF3_Datasheet_K
Last Update Time  2024-09-29
File Size  1.79MB
Download Times  0
