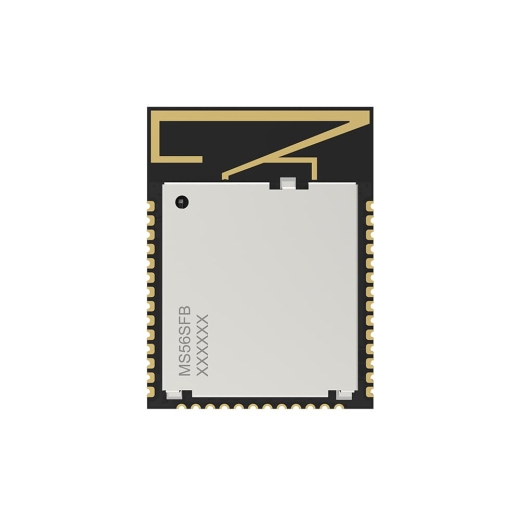

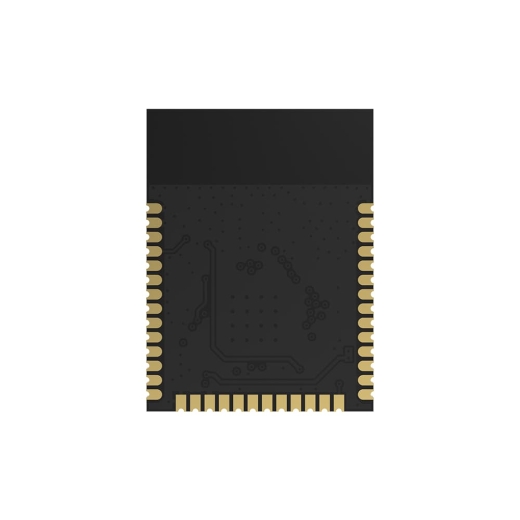

  • Package

IN628E-MS56SFB

Ultra-low Latency Bluetooth Module

The MS56SFB-IN628E is a highly flexible, cost-effective module with a synchronous multi-node low-latency (SMULL) stack based on the IN628E, integrating both the 2.4G band and the MCU system. Its powerful Arm® Cortex®-M4F CPU with cores running at 64Mhz, in addition to 512kB FLASH program space, 384 KB ROM and 184 KB SRAM, has 4 KB of eFuse memory and a well-designed hardware security engine supporting AES128, AES256, SHA-1, AES128, AES256, SHA-1, SHA-2 and ECC encryption and decryption algorithms, as well as other powerful supporting resources provide the perfect solution for synchronous connectivity. Built-in PA/LNA with a minimum distance of 820 meters at 10dbm 1Mbps.


Specifications
Specifications
IN628E-MS56SFBBasic Parameters

Model NO.

MS56SFB

Sensitivity(RX)

-97.5dBm

Antenna

PCB

Transmission Power

~+13dBm

SoCset

INPLAY-IN628E

Current(TX)

10dBm-15mA

Max Range

180~400m

Current(RX)

5mA

Dimension(mm)

23.2x17.4x2mm

GPIO

24

Flash

512 kB

Certification

/

RAM

384kB

Hardware

None

Application

 Smart lighting, Smart lock, Industrial internet, Intelligent medical care, Toys, Function switches
