LoRa vs LoRaWAN vs LoRa Mesh: What's the Real Difference?

1. Introduction

As the Internet of Things (IoT) continues to grow, developers and decision-makers are faced with an expanding set of wireless communication options. Among them, LoRa, LoRaWAN, and LoRa-based mesh networks are often mentioned together—but they’re not the same.

Despite sounding similar, each of these technologies represents a different layer or design philosophy in the IoT communication stack:

• LoRa is a radio modulation technology.

• LoRaWAN is a standardized network protocol built on top of LoRa.

• LoRa Mesh refers to custom, non-standard mesh implementations using LoRa as the underlying physical layer.

Because their names are so similar and they all support long-range, low-power communication, it's easy to confuse their roles. However, choosing the right one for your project can significantly impact performance, scalability, and energy efficiency.

In this article, we'll break down the differences between LoRa, LoRaWAN, and LoRa Mesh by exploring:

• What each technology actually is

• How they work in terms of topology, infrastructure, and power usage

• When (and why) you might choose one over the others

Let’s start by understanding the foundation of it all—LoRa.

2. What Is LoRa?

LoRa, short for Long Range, is a wireless modulation technique developed by Semtech. It operates at the physical layer (PHY) of the network stack and is responsible for encoding data into radio waves that can travel long distances while consuming minimal power.

How It Works

LoRa uses a form of spread spectrum modulation called Chirp Spread Spectrum (CSS). This allows data to be transmitted over very narrow bandwidths, reducing interference and enabling transmission over kilometers—even in environments with obstacles like buildings or trees.

Some key characteristics of LoRa:

• Low data rate: Typically between 0.3 kbps and 50 kbps

• High link budget: Enables long-distance communication (2–15 km depending on terrain)

• Unlicensed spectrum: Operates in ISM bands such as 433 MHz, 868 MHz (EU), and 915 MHz (US)

Because LoRa operates only at the physical layer, it does not define:

• How devices connect to a network

• How data is routed or authenticated

• How security is managed

That’s where LoRaWAN comes in.

3. What Is LoRaWAN?

LoRaWAN stands for Long Range Wide Area Network, and it is the network protocol layer built on top of LoRa’s physical radio modulation. While LoRa handles how data is transmitted over the air, LoRaWAN defines how devices join the network, exchange data, and stay secure.

It’s an open standard developed and maintained by the LoRa Alliance, ensuring interoperability between devices and networks worldwide.

Network Architecture

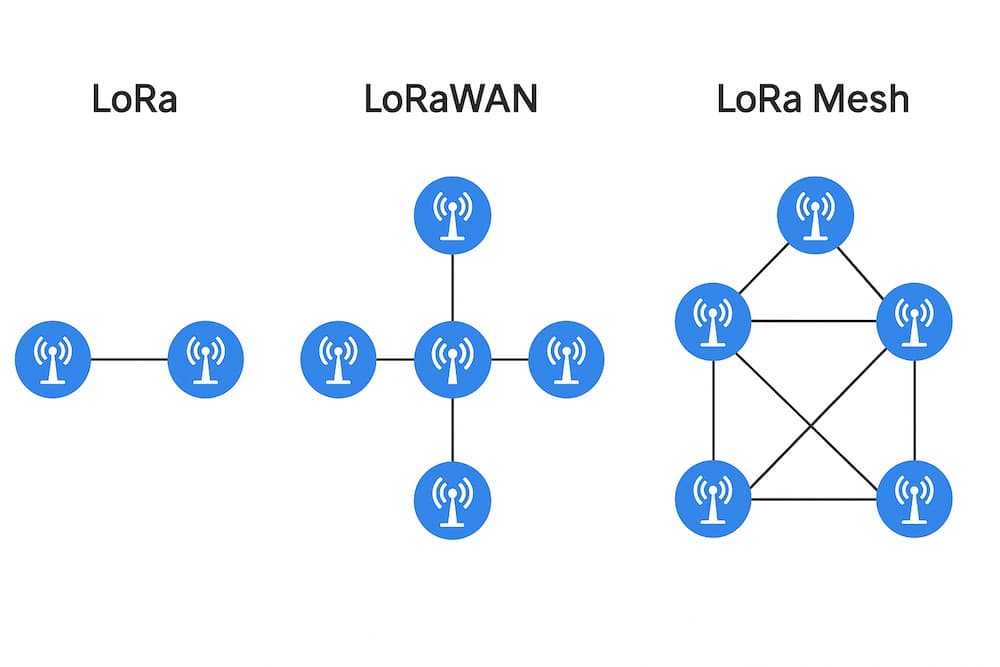

LoRaWAN follows a star topology, where end devices (sensors, trackers, etc.) communicate directly with gateways, which forward messages to a centralized network server. Unlike mesh networks, devices do not relay messages to each other.

• End Device: A battery-powered sensor or node that sends and receives data

• Gateway: A relay that converts LoRa radio packets into IP packets

• Network Server: Manages device authentication, message de-duplication, and data routing

• Application Server: Delivers data to the end user or system (e.g., cloud dashboard)

Key Features of LoRaWAN

• Bi-directional communication

• Adaptive data rate (ADR) to optimize power and range

• End-to-end AES-128 encryption

• Device classes (A, B, C) to balance power and responsiveness

In short, LoRaWAN turns LoRa into a scalable, secure, and structured IoT network—ideal for smart cities, agriculture, asset tracking, and more.

But what happens when your deployment environment is complex and you need nodes to forward messages across each other? That’s where LoRa Mesh comes into play.

4. What Is a LoRa Mesh Network?

While LoRaWAN uses a star topology, some developers have explored using LoRa (the radio layer) in mesh network configurations. This approach—commonly referred to as a LoRa Mesh Network—is not part of the official LoRaWAN standard but is instead implemented through custom or proprietary protocols built on top of LoRa.

How LoRa Mesh Works

In a mesh network, devices (nodes) can communicate with one another directly and forward data on behalf of other nodes. This multi-hop communication allows messages to reach a destination even if the target device is outside the direct range of the source node.

Mesh networks can offer:

• Greater coverage without relying on gateways in every location

• Redundancy and fault tolerance through dynamic routing paths

• Flexibility in environments where infrastructure is limited or unstable

However, mesh functionality comes with trade-offs:

• Increased power consumption, since nodes must stay active to relay data

• Higher complexity in network routing and synchronization

• No standardization—each implementation (e.g., RadioShuttle, Wirepas, WiMOD) has its own stack and limitations

Important Clarification

LoRa Mesh ≠ LoRaWAN.
The LoRaWAN specification does not support mesh networking. If your solution depends on multi-hop communication, LoRaWAN is not the right choice—unless extended by a hybrid or proprietary protocol.

So, while mesh can be useful in niche scenarios—like sensor networks in forests, tunnels, or large buildings—it’s important to understand its limitations and lack of interoperability with standard LoRaWAN networks.

Next, let’s put all three side-by-side to compare their differences clearly.

5. Side-by-Side Comparison Table

To help clarify the differences between LoRa, LoRaWAN, and LoRa Mesh, here’s a quick comparison across key technical and functional aspects:

Quick Summary:

• LoRa is just the wireless foundation.

• LoRaWAN builds a secure, scalable protocol for real-world IoT deployments.

• LoRa Mesh fills in niche gaps, but lacks standardization and power efficiency.

Next, let’s look at which technology fits best depending on your application needs.

6. When to Use LoRa, LoRaWAN, or LoRa Mesh?

Choosing the right long-range wireless technology depends on your project’s goals, environment, and infrastructure limitations. Here's a breakdown of when each option makes the most sense:

✅ Use LoRa When:

• You need a simple, point-to-point or point-to-multipoint communication setup

• You're building a proprietary system and have full control over both ends (transmitter and receiver)

• There’s no need for large-scale network infrastructure, or you're using LoRa as a transport layer in a custom stack

Example: A basic remote control system or sensor node that directly sends data to a nearby receiver module.

✅ Use LoRaWAN When:

• You want to deploy large numbers of devices across wide areas

• Your application requires centralized network control, security, and scalability

• You need to use certified, interoperable devices in a production environment

• You require bi-directional communication and cloud/server integration

Example: Smart agriculture systems, city-wide parking sensors, energy metering, logistics tracking, or industrial IoT.

✅ Use LoRa Mesh When:

• You're operating in environments with no fixed gateway infrastructure (e.g., forests, mines, disaster zones)

• You need node-to-node communication with multi-hop capabilities

• You're okay with a custom or vendor-specific stack, and possibly higher power consumption

• Your deployment is temporary, ad hoc, or in dynamic terrain

Example: Emergency sensor networks in remote areas, mesh lighting control in underground tunnels, or research projects with flexible topologies.

Important Note:
LoRa Mesh is not part of the LoRaWAN specification, so you’ll lose the benefits of ecosystem interoperability and long-term support from the LoRa Alliance.

To summarize, each technology has its place. Your selection should be driven by your application’s scale, power constraints, topology, and need for standardization.

Let’s wrap up this comparison in the next section.

7. Conclusion

While LoRa, LoRaWAN, and LoRa Mesh all rely on the same underlying radio technology, they serve very different roles in the IoT ecosystem.

• LoRa handles the physical transmission of signals. It’s ideal for point-to-point setups or as a foundation for custom protocols.

• LoRaWAN builds on LoRa to provide a scalable, secure, and standardized network protocol—making it the go-to choice for most commercial IoT applications.

• LoRa Mesh offers flexible, multi-hop connectivity in infrastructure-free environments, but with higher complexity and power demands.

Choosing the right approach depends on what you need:

• A simple link? Go with LoRa.

• A reliable, open, cloud-connected system? Choose LoRaWAN.

• An adaptable network without gateways? Consider LoRa Mesh (with caution).

By understanding the differences, you can make informed decisions and design wireless systems that meet both your technical and operational goals.
