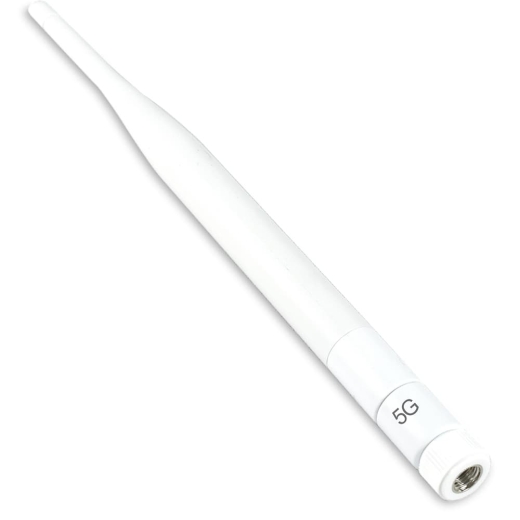

Design sketch
Optimized for 5 GHz Band
Covers 5000–5800 MHz, ideal for high-frequency wireless communication.
High RF Performance
VSWR ≤ 2.5, up to 4.56 dBi gain, and peak efficiency of 77.09% for stable, high-speed transmission.
Omnidirectional Coverage
Omnidirectional radiation with vertical polarization ensures consistent signal coverage.
Standard SMA Interface
SMA-J connector with 50Ω impedance for easy integration.
Foldable & Durable Design
ABS + copper construction with foldable structure and 195 ± 2 mm length for reliable use.
RoHS Compliant
Meets RoHS 2015/863/EU environmental standards.
Electrical Specifications | |
Frequency Range | 5000-5800MHZ |
VSWR | ≤2.5 |
GAIN | ≤4.56dBi |
Radiation | OMNI |
Polarization | LINEAR |
Input Impedance | 50 Ω |
Mechanical Specifications | |
Input connector | SMA-J |
Antenna material | ABS + COPPER |
Working Temperature | -30℃~+80℃ |
Working Humidity | 40~85% |
Weight | 17±1g |
