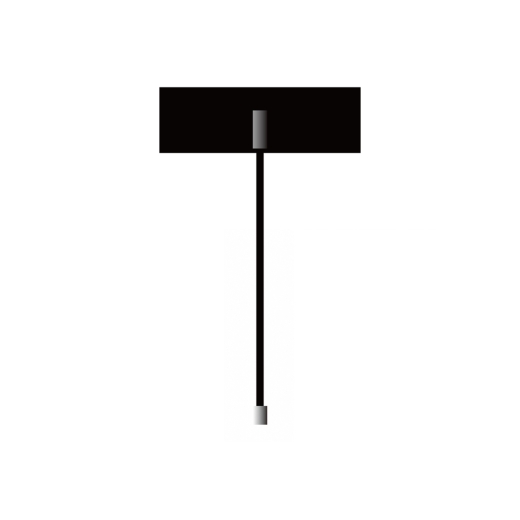

Design sketch
Dual-Band Wireless Performance
Supports 2.4 GHz and 5.8 GHz bands (2400-2500 / 5750-5950 MHz) for versatile wireless applications.
High Gain & Stable Transmission
Up to 5.9 dBi gain at 2.4 GHz and 8.73 dBi at 5.8 GHz, with VSWR ≤ 2.0 for reliable signal transmission.
Flexible & Lightweight FPC Design
Flexible FPC construction supports bending and folding, making it ideal for compact wireless devices and module testing.
Easy Snap-On Installation
Features an L-PEX-1 connector and snap-on mounting for convenient integration and testing.
Wide Operating Temperature Range
Supports -35°C to +85°C operation for reliable performance in various environments.
Compact & RoHS Compliant
Compact 42 × 12 mm design with 50Ω impedance, 10W power capacity, and RoHS compliance.
Electrical Specifications | |
Frequency Range | 2400~2500MHz/5750~5950MHz |
VSWR | ≤2.0 |
GAIN | 2.4G:5.9dBi; 5.8G:8.73dBi |
Power Capacity | 10W |
Polarization | Linear |
Input Impedance | 50 Ω |
Mechanical Specifications | |
Connector Type | IPEX-1 |
Cable Type | RF1.13 |
Cable Length | 100mm |
Mounting Method | Snap-on |
Working Temperature | 35℃~+85℃ |
