Design sketch

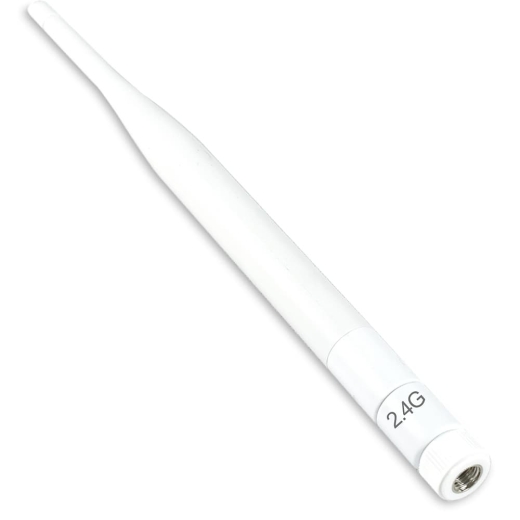

Optimized for 2.4 GHz Band
Covers 2400–2500 MHz, ideal for common wireless communication applications.
Stable RF Performance
VSWR ≤ 2.0, up to 3.52 dBi gain, and 54.7%–72.44% efficiency for reliable signal transmission.
Standard SMA Interface
SMA-J connector with 50Ω impedance, ensuring easy integration with various devices.
Foldable & Practical Design
Foldable structure with a length of 195 ± 2 mm, balancing usability and portability.
Wide Application Support
Suitable for a wide range of wireless-enabled devices and communication scenarios.
RoHS Compliant
Meets RoHS 2015/863/EU environmental standards.
Electrical Specifications | |
Frequency Range | 2400-2500MHZ |
VSWR | ≤2.0 |
GAIN | ≤3.52dBi |
Radiation | OMNI |
Polarization | LINEAR |
Input Impedance | 50 Ω |
Mechanical Specifications | |
Input connector | SMA-J |
Antenna material | ABS + COPPER |
Working Temperature | -30℃~+80℃ |
Working Humidity | 40~85% |
Weight | 17±1g |
